Fresh Food Traceability Solution — RFID Hardware for Retail Environments

Jul 10, 2026

The Challenge

Fresh food retail demands continuous visibility across receiving, cold storage, sales floor, and checkout. Temperature fluctuations, metal interference, condensation, and high-density product arrangements create conditions where generic RFID hardware fails.

The Solution

SeeMore IoT provides a purpose-built hardware ecosystem for fresh food traceability, anchored by the Symo Series split-type readers and TL Series retail labels — engineered for real-world retail conditions.

Symo FR34A/FR38A — Split-Type UHF RFID Reader

Specification	Detail
RFID Chip	Impinj E710 (E510 optional)
Air Protocol	EPC Global Class 1 Gen 2 / Gen2x, ISO/IEC 18000-6C
Frequency Range	FCC / ETSI / CMIIT — configurable
Output Power	5dBm to 33dBm (±1dB)
Read Rate	>1,000 tags per second
Read Distance	Up to 30 meters
Antenna Ports	4 or 8 x RP-TNC Female
Interfaces	RS232, RS485, Ethernet, GPIO, Wiegand
Operating Temperature	-25°C to 70°C

https://www.seemoreiot.com/category/rfid-e-tag

Why It Works for Fresh Food Retail

Multi-port flexibility — 4 or 8 antenna ports enable customized coverage zones for metal-rich store layouts
Wide temperature tolerance — stable operation from -25°C to 70°C
Global compliance — FCC, ETSI, and CMIIT certified
Edge intelligence — on-device filtering reduces cloud dependency and network load
Open integration — C#, Java, C/C++ APIs with SDK support

Retail UHF RFID Label

Specification	Detail
Chip	Impinj M830
Protocol	ISO18000-6C
Frequency	860-960MHz
EPC Memory	128 Bits
TID	96 bits with 48-bit serial number
Write Endurance	1,000 cycles
Data Retention	10 years
Packaging	3,000 pcs per roll, 3-inch core

Why It Works for Fresh Food

Proven chip platform — Impinj M830 delivers consistent read performance in high-density retail environments
Printable and encodable — supports on-site encoding at receiving
Moisture-resistant construction — designed for cold chain conditions
High-volume format — roll-fed for efficient application

https://www.seemoreiot.com/products

Deployment Architecture

Zone	Equipment	Function
Receiving dock	FR34A/FR38A + outdoor antennas	Capture incoming pallets, encode batch/date data
Cold storage	Integrated readers with IP66/IP67	Maintain read reliability in refrigerated environments
Sales floor	FR34A/FR38A + narrow-beam antennas	Zone-specific reads, reduce cross-aisle interference

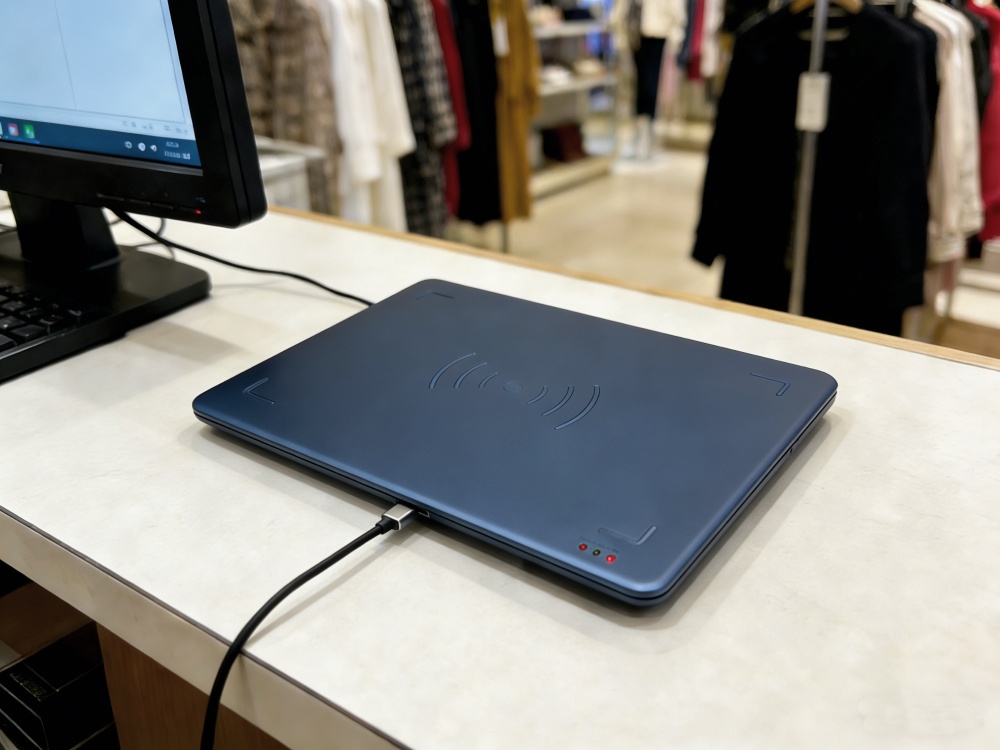

Checkout	Desktop readers	Rapid contactless item identification
Mobile verification	Vita Series handheld terminals	Cycle counts, expiration audits, discrepancy checks

Edge Intelligence

SeeMore IoT embeds intelligence at the device edge:

On-device data filtering — eliminates duplicate reads
Tag classification — distinguishes product types and batches
Anomaly detection — flags read patterns deviating from expected behavior

Business Outcomes

Inventory accuracy — automated reads replace manual counts
Waste reduction — real-time expiration tracking enables dynamic markdowns
Recall response — batch-level traceability reduces removal time to hours
Labor efficiency — staff focus on exception management, not scanning

Get Started

Free samples, encoding services, and solution consulting available.
