RAIN RFID Hardware Solution for Retail, Logistics & Industrial Sectors

Precision UHF RFID Access Control Reader System IntelliGate A9

Precision UHF RFID Access Control Reader System IntelliGate A9

Precision Entry Control, Engineered for Enterprise Intelligence:

This UHF RFID Access Control Reader System is forged through 10 years of field-proven experience across 200+ global deployments,

which redefines precision entry management. Integrating 4 narrow-beam antennas (11±1dBi gain) and infrared trigger technology

Transformative Applications

Scenario	Value Delivered	Applications Example
Unstaffed Retail	RFID Frictionless checkout flow	Walk-through payment
Smart Factory Warehouse	RFID Automated material audit	200 pallets/min full-load verification
Electrical Utility Warehouse	RFID Live-equipment safety control	UHF replacing high-voltage induction cards
Government Archives	RFID Classified document tracking	Unauthorized removal blocking system
Customs Bonded Warehouse	RFID Automated cargo clearance	30-second clearance per truck

Free Sample Now

Features
Parameters

Core Excellence

our UHF RFID Access Control Reader System delivers >98% detection accuracy even in high-density tag environments.

The secret lies in excellent innovations:

• AI-Optimized Anti-Collision Algorithm powers max multiple tags reading rate.

• Precision Narrow-Beam Antennas supports reading accurate to ±40° cone angle

• Beam-Break Trigger Technology: alarm LED/buzzer, infrared sensor built-in

• GPIO perfect configuration for automatic/ trigger reading, entry/exit judging

Why Choose IntelliGate A9 UHF RFID Access Control Reader System?

✓ Aesthetic Integrity: Slim yet Rugged Design for kinds of business application

✓ Zero Configuration Deployment Plug and play – Easy integrated with mainstream WMS/ERP systems

✓ Future-Proof Scalability: industrial PC, display optional

✓ Cyber-Secure Architecture customizable for high request applications

✓ Carbon-Neutral Operation, low standby power consumption

✓ Logistics Optimized Packaging to save your shipping cost

Specification of UHF RFID Access Control Reader System

Mainboard		Physical
Operating System	Linux or Android or None Optional	Dimensions	1467420104mm*2
Processor	ARM9, 400MHz optional	Weight	N.W.: 25kgs/Pair G.W.:30KGS/Pair
Memory	Flash 128MB; DRAM 32 MB optional	Border material	Frame: aluminum alloy Panel: acrylic Base: steel
Expandable	Industrial Android PC/ 10.1” display optional	Main door list	RFID reader / Antenna Infrared Sensor Alarm Led / Buzzer
API Support	Windows / Android / Linux SDK optional	Vice door list	Antenna Infrared Sensor Alarm Led
RFID		Communication
Protocol	ISO/IEC18000-6B, 6C / EPC Global C1Gen2/V2	Wire interfaces	RJ45/RS232/RS485 in standard, HDMI optional
Frequency	FCC: 902-928MHz ETSI: 865-868MHz More optional	Wireless optional	Wi-Fi, Bluetooth, 4G optional
Output Power	0-30dBm adjustable	Power supply	DC 24V/2.5A (DC 9V ~ 30V,60W)
Bandwidth	＜200KHz	Technical support
Reading Width	0-4m suggested	For developers	API, SDK, Software, Doc
Anti-collision	Intensive tags / fast inventory supportable	For operators	Installation manual
Work Mode:	Fixed frequency/ hopping	For After sales	Troubleshooting guidance
Antenna		Environment
Gain	Narrow Beam 11±1 dBi	Operating Temp.	-20 - +55°C
Beam Width	Hor: 40±2° / Ver: 60±2°	Storage Temp.	-40 - +70°C
VSWR	≤1.3	Humidity	5-90% non-condensing
Polarization	Circular x 2-6Pcs optional	Sealing	IP45
Impedance	50 Ω	Power supply	DC 9V ~ 30V,60W
Max Power Handling	10W	Accessories	Network cable1 Power cord1 Coaxial feeding cable2 Expansion screw4
Connector Type	SMA-J (Internal feed)	Accessories

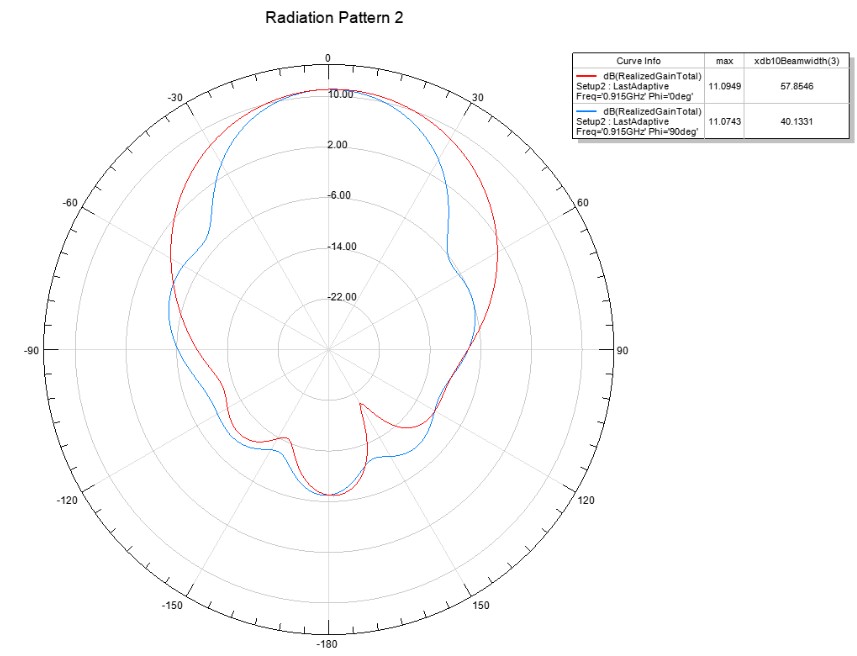

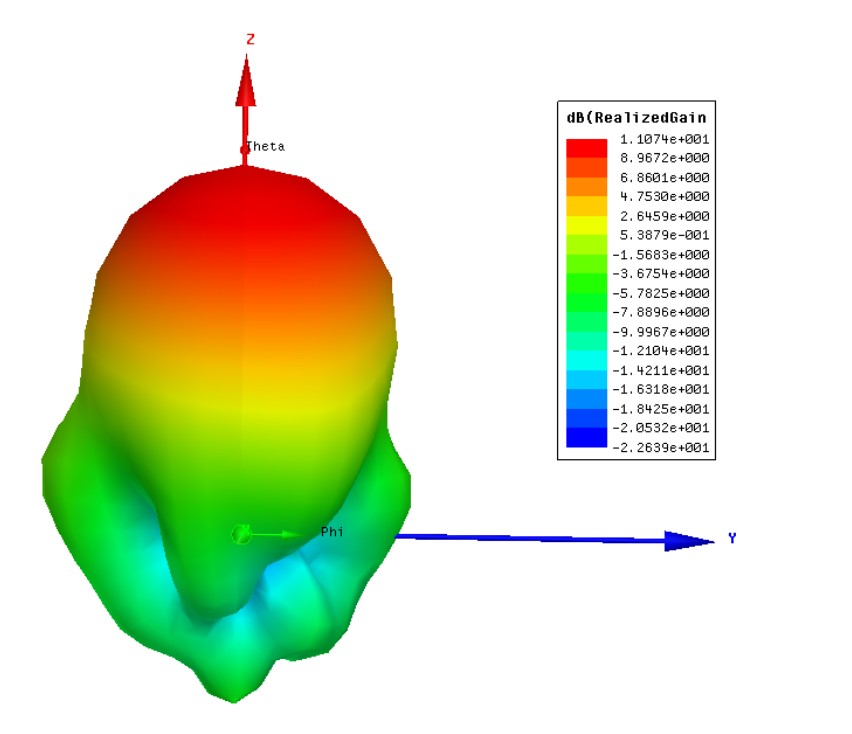

2D Radiation Patterns 3D Radiation Patterns

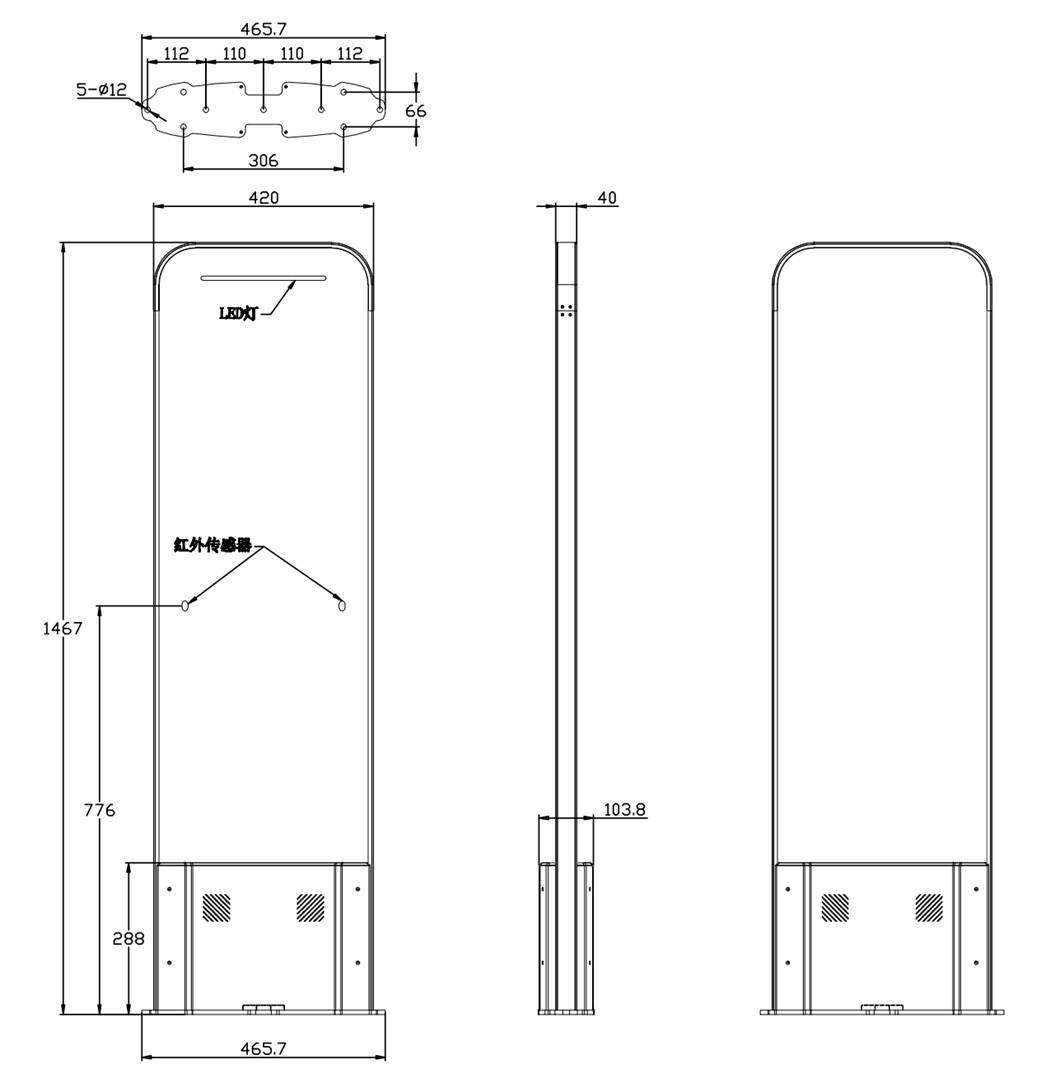

Product Dimensions
