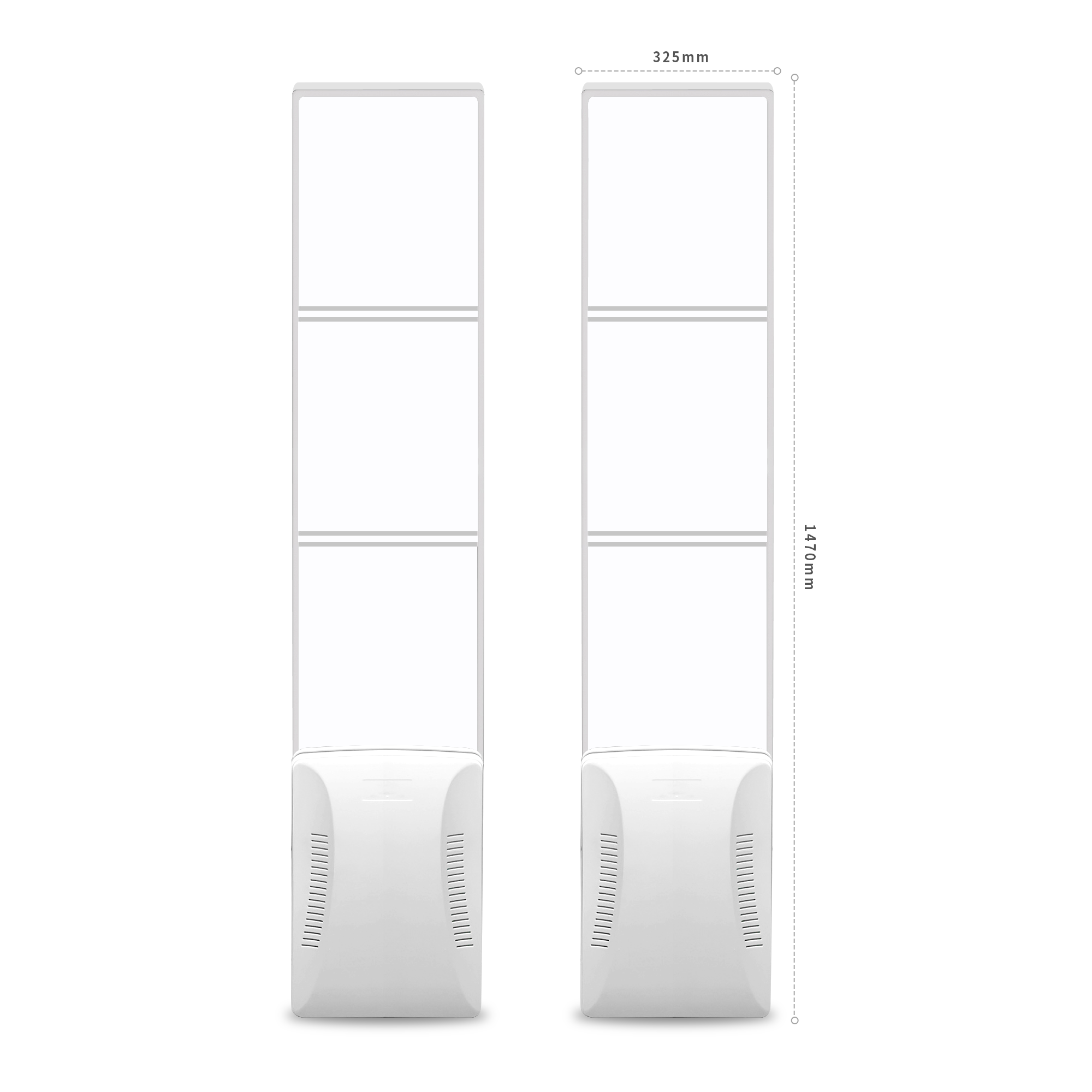

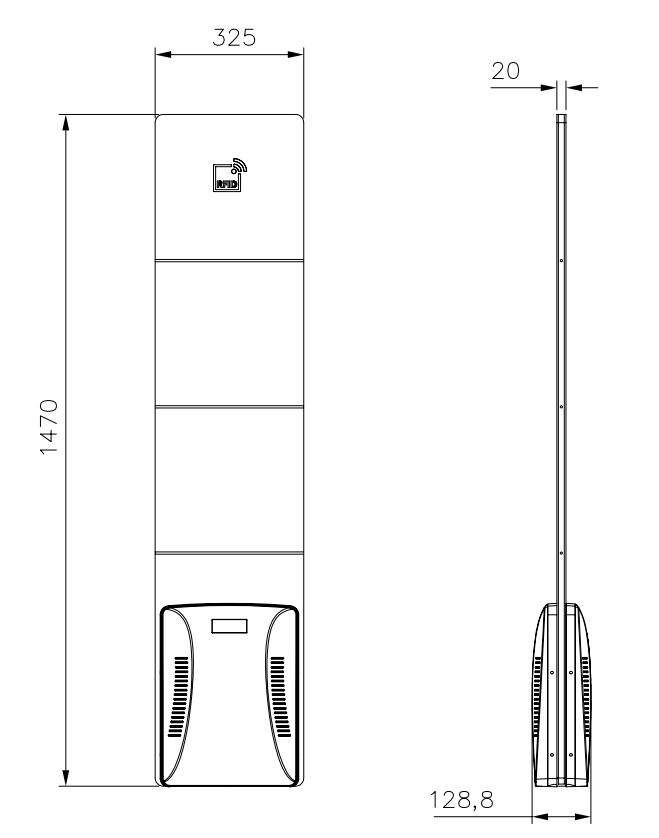

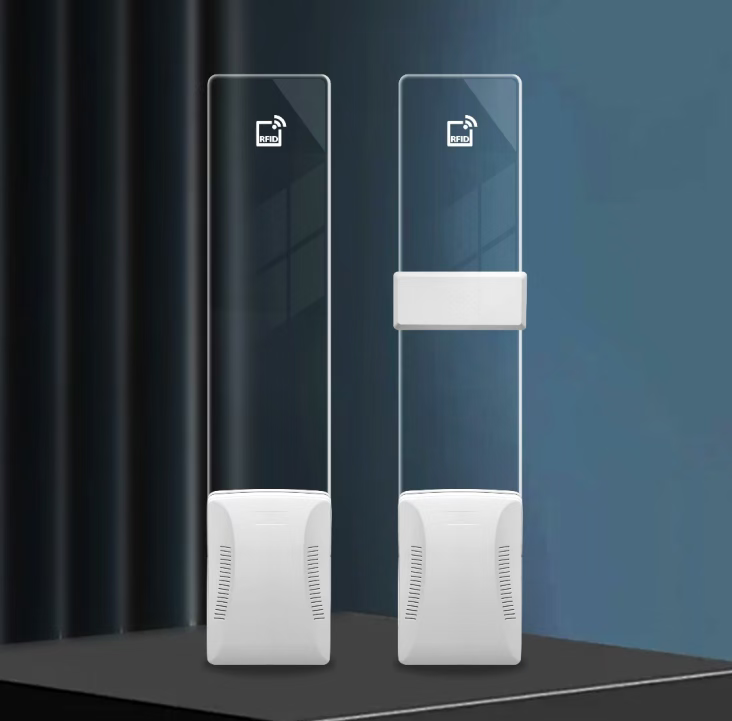

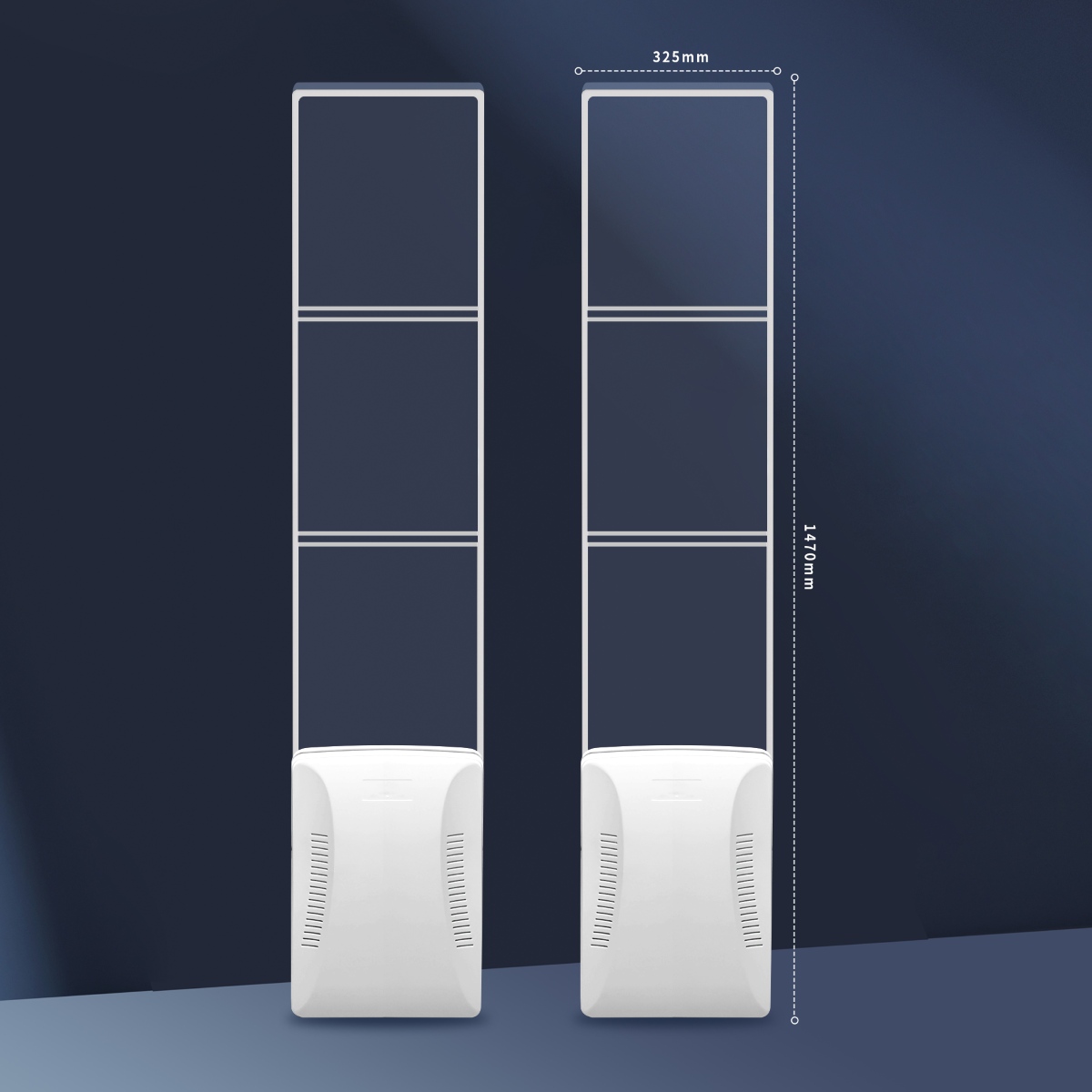

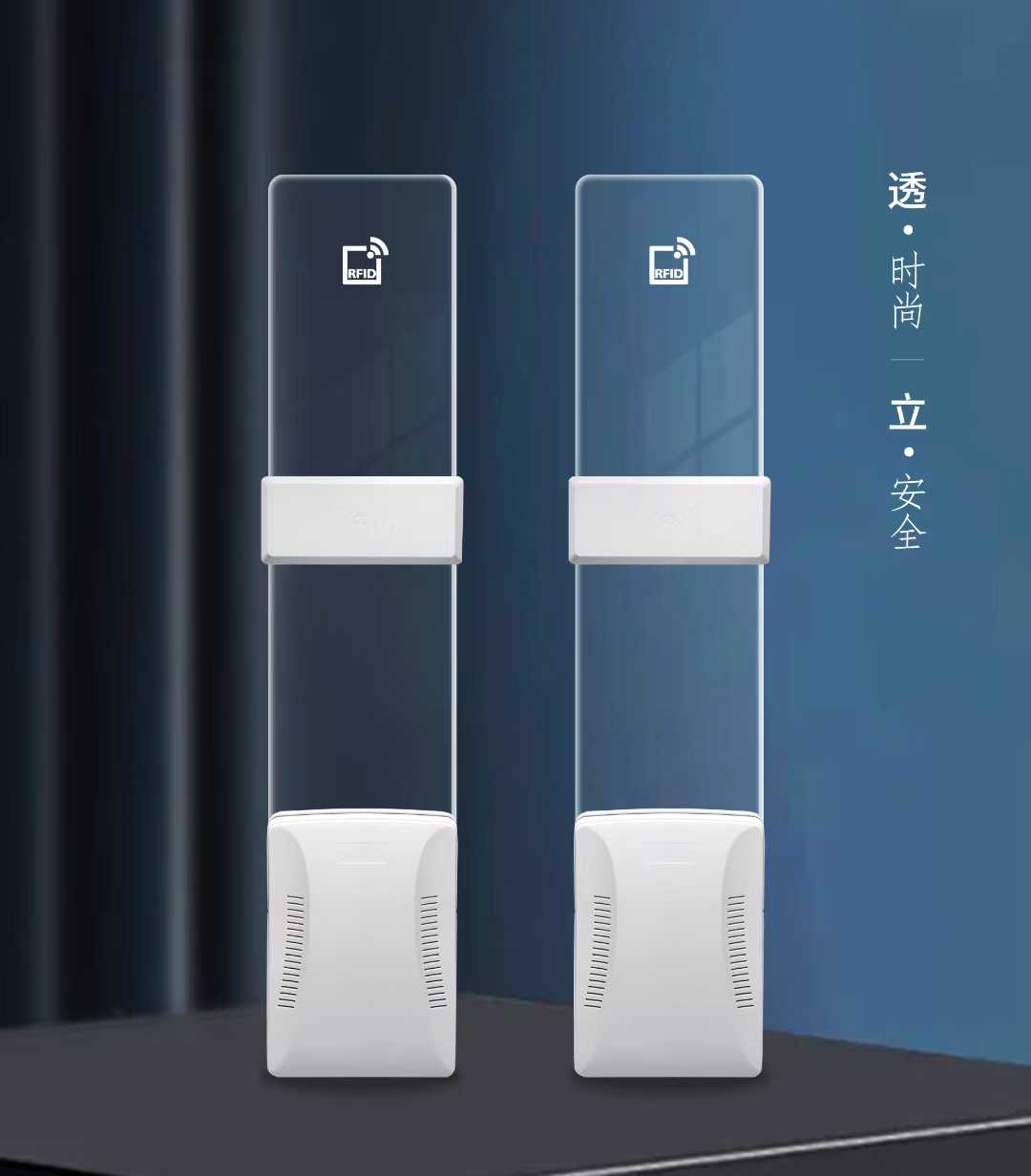

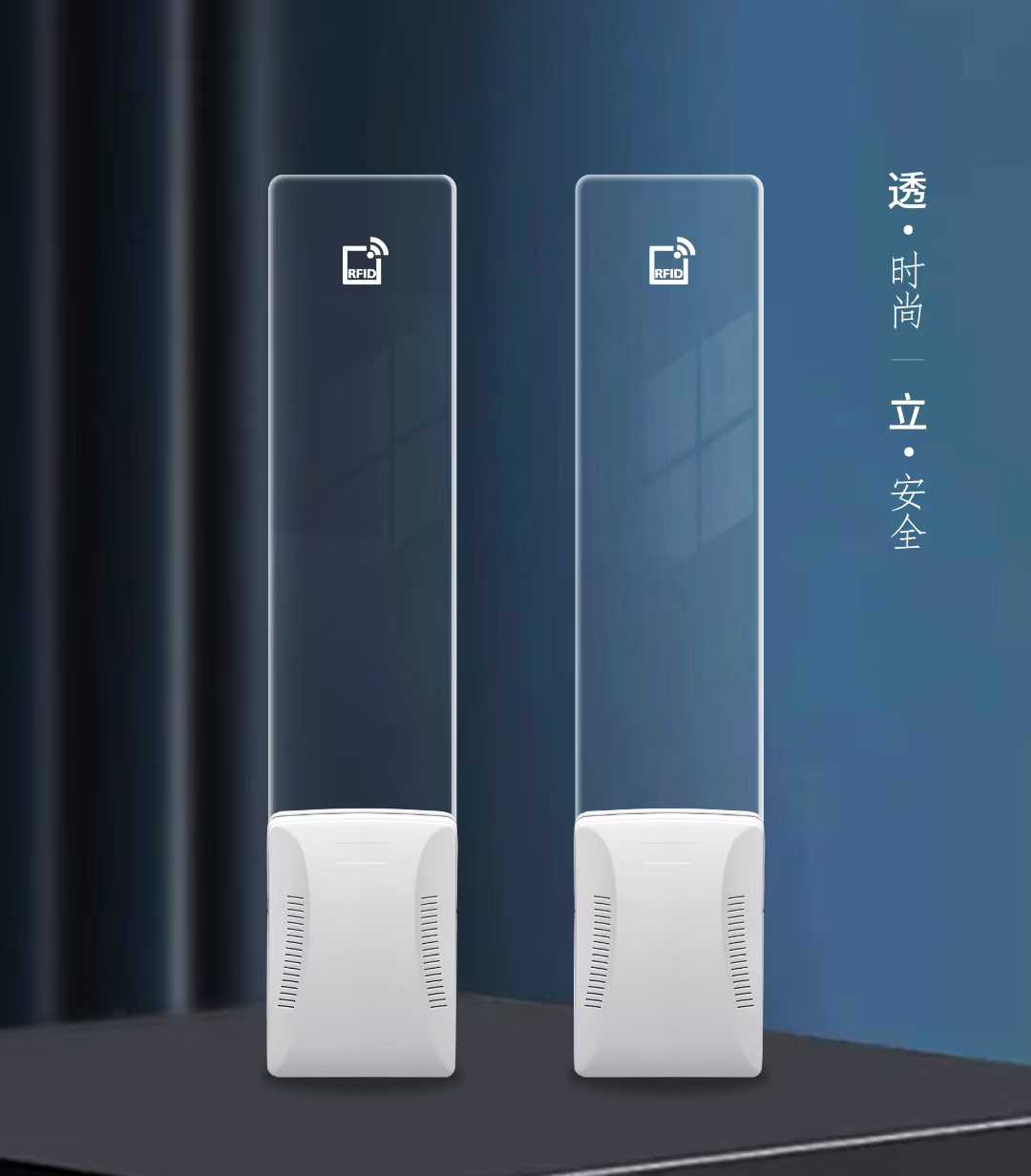

Transparent RFID & EAS Security Portal System for Retail & Library IntelliGate A8

The Impinj R700 series of readers include the R700 and R720 RAIN RFID readers. These readers are designed to support enterprise RAIN deployments that need industry-leading performance, enterprisegrade reliability and security, and support for next-gen RAIN tags. IoT developers can easily build and deploy customized solutions with developer-friendly tools, increased processing power, and increased onreader memory. This document constitutes the electrical and mechanical specifications pertaining to the Impinj R700 and R720 RAIN RFID readers. It contains a functional overview, mechanical characteristics, and electrical specifications. For technical support, visit the Impinj Support Portal at support.impinj.com.   Application Summary Table Industry Use Case R700 Value Proposition Performance Metric Logistics Cross-Dock Scanning Bulk reading at dock doors >99.9% read accuracy Retail Smart Shelves Real-time inventory visibility Sub-2s shelf refresh rate Manufacturing Work-in-Process Tracking High-speed ID on conveyors 1,100 tags/sec throughput Healthcare Equipment Management Reliable reads in metal environments -93dBm sensitivity Libraries Automated Check-in/out Simultaneous multi-item processing 50+ books per scan

The Impinj Speedway R420 is a robust and reliable RAIN RFID fixed reader designed to deliver exceptional item visibility across diverse applications. With four antenna ports and support for up to 32 read zones, this reader provides the flexibility and performance required for inventory management, asset tracking, and supply chain solutions. Featuring Impinj's advanced Autopilot technology, the R420 automatically optimizes RF performance in dynamic environments.   Applications   Retail inventory management Warehouse and logistics tracking Manufacturing process control Asset management systems Library and document tracking

Intelligent Access Control with Integrated Anti-Theft Protection, Designed for Retail / Library / Logistics The IntelliGate A8 integrates advanced UHF RFID detection and EAS (Electronic Article Surveillance) technologies into a single streamlined portal. Built with an enterprise-grade Impinj E710 chipset, it ensures >98% tag detection accuracy—even in high-density environments. Key innovations include: √ AI-Optimized Anti-Collision Algorithm for rapid multi-tag identification √ Dual-Mode Sensing: Combines UHF RFID for item-level tracking and EAS for theft deterrence √ Beam-Break Trigger Technology with infrared sensors for accurate entry/exit judgment √ Integrated Audio-Visual Alarms with 3-channel LED/buzzer for real-time alerts √ Narrow-Beam or Phased Array Antenna Design minimizes cross-reads and focuses coverage toward the exterior, to avoid mistakes.   Transformative Applications Scenario Value Delivered Application Example 🛒 Smart Retail RFID + EAS dual-layer security Unattended checkout with anti-theft alarm 📚 Libraries & Archives Unauthorized item removal prevention Real-time alert on unchecked material exit 🧳 Apparel & Accessories Item-level tracking + loss prevention Fitting room & exit monitoring 🏭 Warehouse & Logistics Automated audit and exit verification Tool & asset tracking with anti-theft 📦 Logistics Centers Parcel & pallet tracking with exit control Automated outbound inspection

The Symo IR08 Integrated RFID Reader represents the next generation of all-in-one RAIN RFID technology, engineered for superior performance and effortless deployment.  Combining the industry-leading Impinj E510 RFID chip with a high-gain 8dBi circular polarized antenna, this compact yet powerful reader delivers exceptional read accuracy and range in a single, ruggedized enclosure.  Ideal for environments where space, reliability, and ease of installation are critical, the IR08 is designed for seamless integration into automated identification and data capture (AIDC) systems across logistics, manufacturing, retail, and smart infrastructure. As an integrated UHF RFID reader, it eliminates the need for external antennas and complex cabling, reducing total cost of ownership while maximizing operational efficiency.  Whether deployed in harsh industrial settings or high-traffic urban applications, the IR08 offers plug-and-play functionality without compromising on power or precision.

The SkyLink H70 Rugged Handheld Terminal is an industrial-grade Android 12 mobile computer engineered for demanding environments. Featuring global connectivity (4G/Wi-Fi/BT/GPS), ultra-long battery life (10,000mAh), and optional enterprise-grade data capture (UHF RFID + Barcode), it excels in logistics, warehousing, field service, and asset tracking applications. Its MIL-STD rugged design ensures reliability in extreme conditions.   Core Excellence Long-Range UHF RFID Scanning:  IMPINJ E710 chip, max 15-25m read range Massive 10,000mAh Battery:  8+ hours continuous operation | 300h+ standby Military-Grade Ruggedness: 1.5m drop resistance | 1,000 tumbles | IP65 High-Speed Data Capture:  Optional 5mil barcode scanner (50 scans/sec) + NFC (3-5cm) Global Connectivity: 4G LTE multi-band | Dual-band Wi-Fi (2.4G/5G) | BT 5.0 | GPS

Product Overview The SkyLink H80 is a high-performance rugged tablet engineered for extreme environments. Featuring a 8" sunlight-readable display, octa-core processor, and IP68-rated durability, it delivers reliable operation in demanding industrial, field-service, and public-safety applications. With modular expansion options (RFID, NFC, Barcode, Fingerprint, etc.) and global connectivity (4G/Wi-Fi 5/GPS), it empowers mobile workflows with enterprise-grade resilience. Industrial Tablet PC for Data Collection - 5G industrial tablet PC with GPS NFC fingerprint.   Transformative Applications Industry Use Case Enabled Features ? Field Service Utility Maintenance Centimeter GPS + 4G/Wi-Fi + 20MP camera + Barcode scanning ? Warehousing Inventory Management UHF RFID (860-960MHz) + Hard barcode scanner (50 scans/sec) optional ? Public Safety Mobile Command Center FBI/ISO fingerprint module + PTT keys + Thermal imaging (optional) ⚕️Healthcare Patient ID Verification ID card/social security reader + HIPAA-compliant Android OS ⚡Energy & Mining Hazardous Area Inspection IP68 + -40°C storage temp + Explosion-proof certification (optional)

Precision Entry Control, Engineered for Enterprise Intelligence:  This UHF RFID Access Control Reader System is forged through 10 years of field-proven experience across 200+ global deployments, which redefines precision entry management. Integrating 4 narrow-beam antennas (11±1dBi gain) and infrared trigger technology Transformative Applications Scenario Value Delivered Applications Example Unstaffed Retail RFID Frictionless checkout flow Walk-through payment Smart Factory Warehouse RFID Automated material audit 200 pallets/min full-load verification Electrical Utility Warehouse RFID Live-equipment safety control UHF replacing high-voltage induction cards Government Archives RFID Classified document tracking Unauthorized removal blocking system Customs Bonded Warehouse RFID Automated cargo clearance 30-second clearance per truck

The SkyLink H30 Rugged Handheld Terminal is an industrial-grade Android 12 mobile computer engineered for demanding environments. Featuring global connectivity (4G/Wi-Fi/BT/GPS), ultra-long battery life (10,000mAh), and optional enterprise-grade data capture (NFC + Barcode), it excels in logistics, warehousing, field service, and asset tracking applications. Its MIL-STD rugged design ensures reliability in extreme conditions.   Core Excellence NFC/HF RFID & Barcode QR code scanning:  without UHF version. Massive 10,000mAh Battery:  8+ hours continuous operation | 300h+ standby Military-Grade Ruggedness: 1.5m drop resistance | 1,000 tumbles | IP65 High-Speed Data Capture:  Optional 5mil barcode scanner (50 scans/sec) + NFC (3-5cm) Global Connectivity: 4G LTE multi-band | Dual-band Wi-Fi (2.4G/5G) | BT 5.0 | GPS
