PET Synthetic Paper Flag RFID Label T4221FL for Retail & Medical consumables

Core Excellence

• Optimized Flag Design: Extended non-adhesive section ensures unobstructed RF signal transmission, maximizing read range and accuracy.

• High-Performance Chip: Impinj Monza R6-P delivers excellent sensitivity and fast read/write capabilities.

• Flexible & Durable: Thin, flexible PET construction conforms to curved surfaces and withstands minor impacts.

• Wide Temperature Tolerance: Performs reliably across a broad operating temperature range.

• Customizable Encoding & Printing: Compatible with all major RFID printers for on-demand serialization and branding.

Why Choose Our Flag Tag?

• Superior Read Range: The flag design prevents signal blockage from the tagged item, ensuring consistent performance.

• Easy Integration: Compatible with standard UHF RFID systems and requires no special infrastructure.

• Cost-Effective Tracking: Enables item-level visibility without the need for expensive hardware or complex setups.

• Reliable in Demanding Environments: Resists moisture, chemicals, and physical stress, making it suitable for healthcare and retail logistics.

Technical Differentiation

• Chip: Impinj Monza R6-P with advanced features for dense reader environments.

• Antenna Technology: Etched aluminum antenna on PET ensures consistent performance and durability.

• Memory Configuration: Balanced memory allocation for EPC, TID, and user data with robust security features.

• Form Factor: Specifically engineered flag shape that optimizes both attachment security and RF performance.

Customization Options

• Printing: Thermal-transfer printable area; barcode, QR code, logo, variable data

• Encoding: Pre-encoded EPC & User memory blocks (GS1/GTIN compliant)

• Sequential Serialization: Bulk encoding with unique EPC ranges

• Slitting: Custom roll widths and lengths (MOQ-dependent)

Conversion & Integration

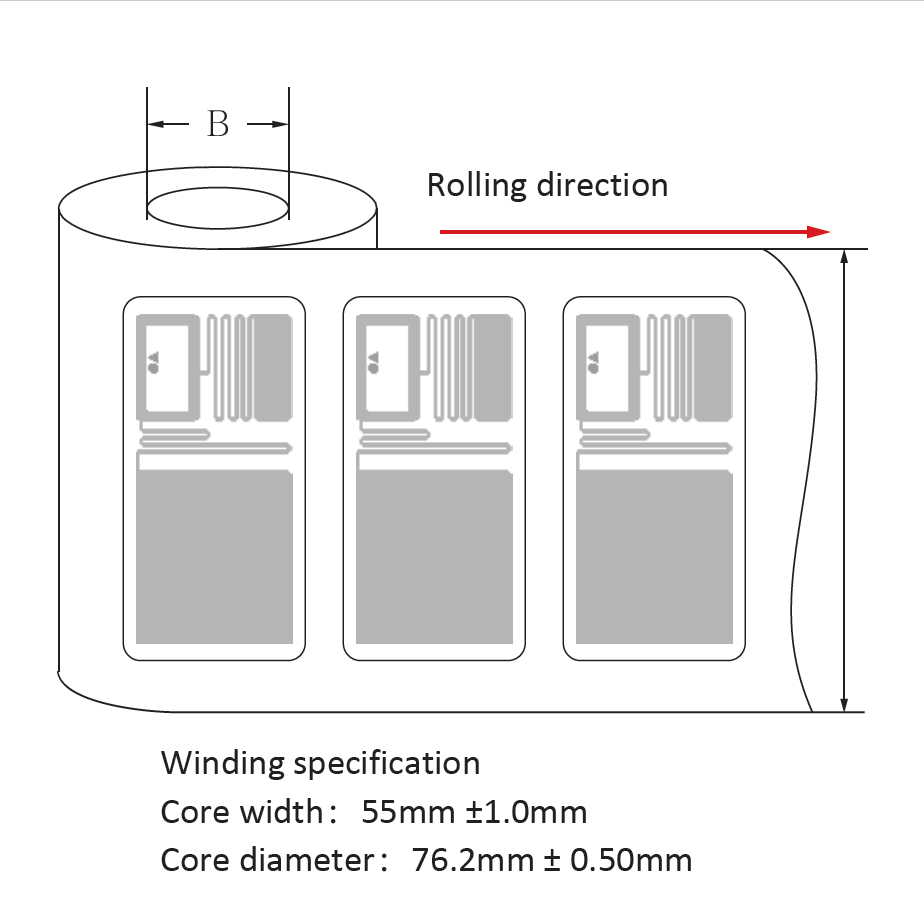

• Format: Supplied on 76mm wide rolls for seamless integration with automated label conversion and print-and-apply systems.

• Compatibility: Ideal for use with Zebra ZT Series, Intermec PD4x, and other industrial RFID printers.

• Label Construction: Can be converted into labels using 60gsm glassine release liner (or other face stocks) for manual or automatic application.

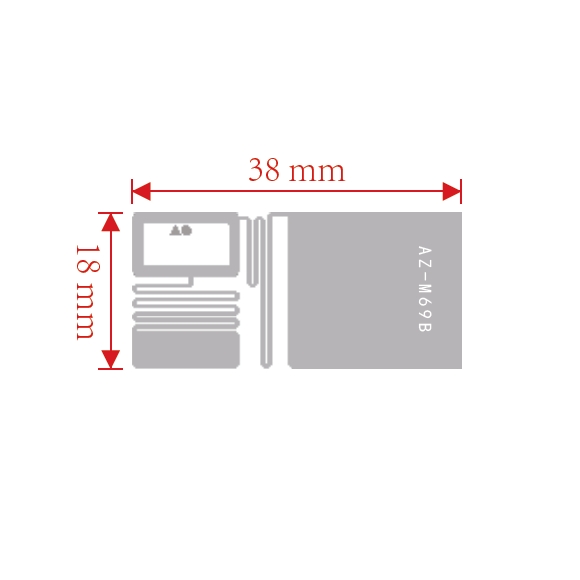

Appearance and Structural Diagram

RFID Tag Layer Structure:

1. Face Stock (PET)：Top printable layer of the tag to provide printable surface and environmental protection

2. Bonding Adhesive: Permanent adhesive for inlay attachment, to secures inlay to face stock permanently

3. Inlay → Inlay (Industry term - retain original): RFID chip + antenna embedded in substrate,

4. which contains the RFID IC and antenna (critical functional component)

5. Release Adhesive: Temporary adhesive for liner backing, which allows temporary attachment to liner

6. Release Liner (Siliconized Paper): Protective backing paper peeled during application, to enable die-cutting and protects adhesive until use
