Engineered for Extreme Linen Lifecycle Management in Healthcare & Hospitality
The TT7010s is a premium, textile-based UHF RFID tag built to survive the most demanding industrial laundry environments. With a tested endurance of over 200 wash cycles and resistance to high-pressure extraction (60 bar), high temperatures (90°C wash, 185°C ironing), and harsh chemicals, it delivers unparalleled longevity and ROI for linen rental companies, five-star hotels, and hospital central sterile services. Its non-metallic, needle-detection-safe construction ensures seamless integration into existing linen seams without triggering security scanners.
✅ Unmatched Industrial Durability
Engineered to withstand industrial wash cycles at 90°C, high-pressure extraction (60 bar), chemical exposure (bleach, alkali), and medical autoclave sterilization (135°C). Guarantees 200+ uses, maximizing linen life and ROI.
✅ Needle-Detection Safe & Non-Magnetic
Passes through needle detectors without setting off alarms—a critical advantage over metal-dome tags for healthcare linen and uniform management. Eliminates downtime and sorting errors.
✅ Superior Global Read Performance
Features the high-sensitivity NXP UCODE 9xe chip, delivering industry-leading read ranges up to 14 meters with fixed readers, enabling high-speed sorting and inventory in large laundry facilities.
✅ Proven in Mission-Critical Environments
The go-to solution for healthcare infection control, hotel linen tracking, and rental textile management, providing full visibility from soiled collection to clean distribution.

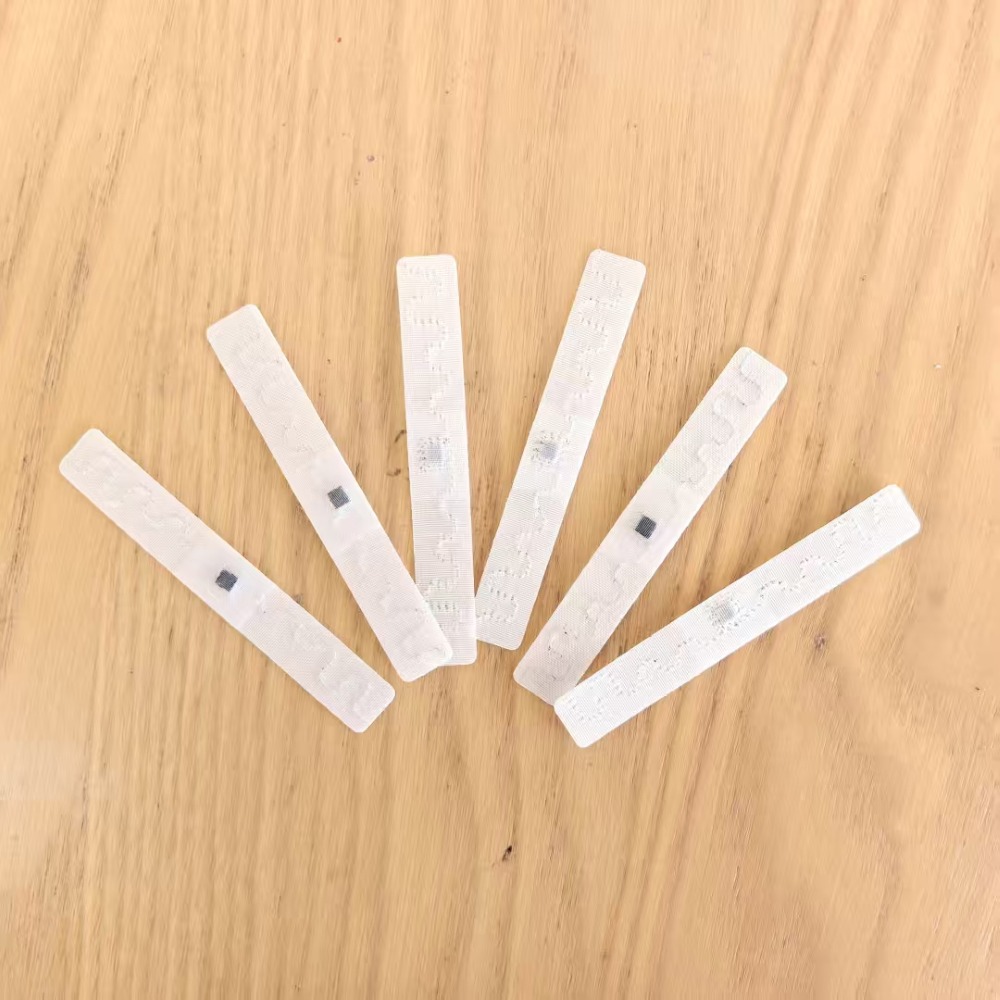

Appearance and Structural Diagram
Attribute | Specification |
---|---|
Model | TT7010s |
Construction | Woven Polyester Fabric, Flexible Antenna |
Dimensions (L×W) | 70 × 15 mm |
Thickness | 1.4 mm (Chip Area), 0.65 mm (Tag Body) |
Weight | 0.48 g |
Installation | Sewn into Hem or Security Pouch |
Attribute | Specification |
---|---|
Protocol | EPC Gen 2 (ISO 18000-6C) |
IC | NXP UCODE 9xe |
Memory | EPC: 128 bits (Read/Write) |
TID: 96 bits (Unique, Read-Only) | |
Frequency Range | 860 – 960 MHz (Global Operation) |
Read Range (Fixed Reader) | > 14 m (US & EU) |
Read Range (Handheld) | > 13.5 m (US), > 9.5 m (EU) |
Data Retention | > 20 Years |
Write Endurance | 100,000 Cycles |
Wash Cycle Warranty | 200 Cycles or 3 Years |
Parameter | Detail |
---|---|
Standard Package | Individual units (Bulk rolls optional) |
Sample Policy | Free evaluation samples available |
Lead Time (Standard) | 10-15 days |
Certification | ROHS, REACH Compliant |
