UHF RFID chip sticker T7520L-A For Healthcare & Apparel Retail

Why Choose This RFID label for Automation/Assets Tracking?

• Direct AD Belt-M730 Alternative: Offers equivalent (or superior) performance with greater supply chain flexibility and competitive pricing.
• Optimized for Conversion: The wet inlay format provides maximum flexibility for converters to create a wide range of finished labels and tags.
• Proven Global Performance: The Impinj M730 chip is an industry standard, ensuring compatibility with all major RFID reader systems worldwide.

Technical Differentiation

✅ Superior Material Performance

Leverages the Impinj M730's adaptive RF tuning to maintain excellent read reliability on difficult-to-tag materials like corrugated cardboard, plastic totes, and liquid-filled containers, reducing read failures in complex environments.

✅ Designed for Automation & Speed

The compact, linear design and consistent 20mm pitch are optimized for high-speed automated conversion and print-and-apply systems, maximizing production line efficiency for high-volume applications.

✅ Enhanced Privacy & Security

Supports the Impinj Privacy Mode function, allowing tags to be temporarily deactivated at the point of sale for consumer privacy and loss prevention, then reactivated for returns or recycling.

✅ Global Compliance & Quality

Fully compliant with ISO 18000-63, EPC Gen2v2, and GS1 standards. Our production meets ISO 9001:2015 quality management standards, ensuring consistent performance and reliability.

Customization Options

• Printing: Thermal-transfer printable area; barcode, QR code, logo, variable data

• Encoding: Pre-encoded EPC & User memory blocks (GS1/GTIN compliant)

• Sequential Serialization: Bulk encoding with unique EPC ranges

• Slitting: Custom roll widths and lengths (MOQ-dependent)

Conversion & Integration

• Format: Supplied on 76mm wide rolls for seamless integration with automated label conversion and print-and-apply systems.

• Compatibility: Ideal for use with Zebra ZT Series, Intermec PD4x, and other industrial RFID printers.

• Label Construction: Can be converted into labels using 60gsm glassine release liner (or other face stocks) for manual or automatic application.

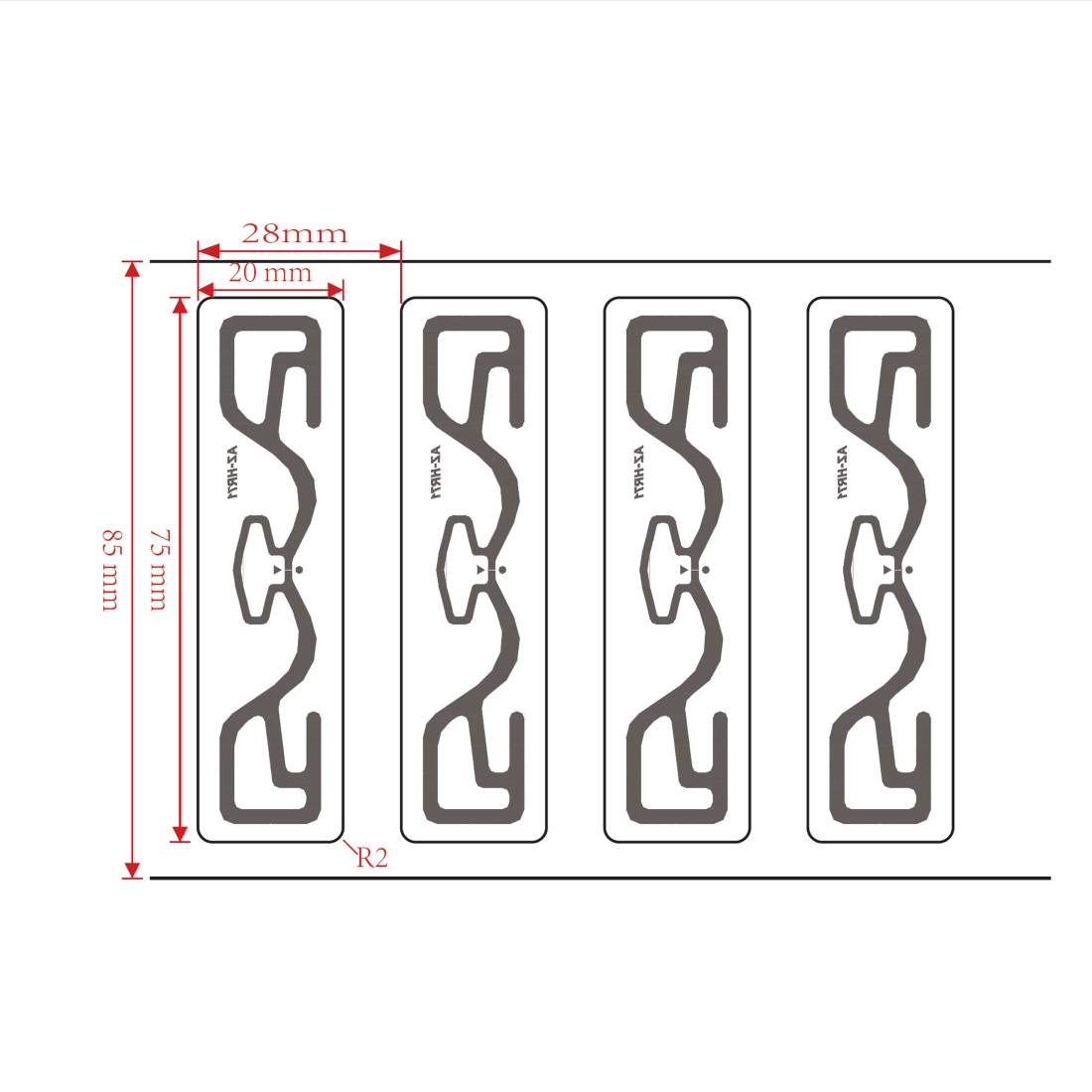

Appearance and Structural Diagram

RFID Tag Layer Structure:

1. Face Stock (PET or Coated Paper)：Top printable layer of the tag to provide printable surface and environmental protection

2. Bonding Adhesive: Permanent adhesive for inlay attachment, to secures inlay to face stock permanently

3. Inlay → Inlay (Industry term - retain original): RFID chip + antenna embedded in substrate,

4. which contains the RFID IC and antenna (critical functional component)

5. Release Adhesive: Temporary adhesive for liner backing, which allows temporary attachment to liner

6. Release Liner (Siliconized Paper): Protective backing paper peeled during application, to enable die-cutting and protects adhesive until use
