Specifications
System Configuration
| Parameter |
Specification |
| Processor |
MTK6765 octa-core, 2.0GHz |
| Operating System |
Android 12 |
| Memory |
4GB RAM + 64GB ROM (standard) 6GB + 128GB optional (MOQ 100 units) |
| Display |
5.5-inch IPS high-definition screen, HD+ (720 × 1440) |
| Touch Panel |
Corning third-generation gorilla glass; Capacitive multi-touch; Supports wet hand and glove operation; Anti-oil and anti-fingerprint coating |
| Card Slot |
Nano SIM × 2, TF card × 1 (3-in-2 hybrid slot, supports up to 256GB expansion) |
| Audio |
Earphone jack, speaker, microphone |
| Battery |
3.8V 4700mAh, removable |
| Charging Interface |
Type-C (supports OTG) × 1; POGO pin interface for cradle charging |
| Indicators |
Tri-color breathing LED |
| Sensors |
Vibration motor, distance sensor, light sensor, gravity sensor, magnetic sensor, gyroscope |
| Camera |
Rear: 13 MP with autofocus (standard) Front: 5 MP (optional) |
Physical Characteristics
| Parameter |
Specification |
| Dimensions |
156 mm × 76 mm × 22.6 mm |
| Weight |
283 g (including battery and scanning module) |
Environmental & Durability
| Parameter |
Specification |
| Operating Temperature |
-20°C to +60°C (*Do not charge at low temperatures for safety) |
| Storage Temperature |
-40°C to +70°C (excluding battery) |
| Humidity |
5%–95% RH (non-condensing) |
| Drop Rating |
Multiple drops from 1.5m onto concrete floor |
| Rolling Test |
500 drum drops from 0.5m height |
| Protection Rating |
IP66 (third-party test report available) |
| ESD Protection |
±8 kV air discharge, ±4 kV contact discharge |
Buttons
| Type |
Description |
| Physical Buttons |
Side scan button × 2, side power button × 1, side volume ± buttons × 2 |
| Touch Buttons |
Return key × 1, HOME key × 1, multitasking key × 1 |
Optional Function Modules

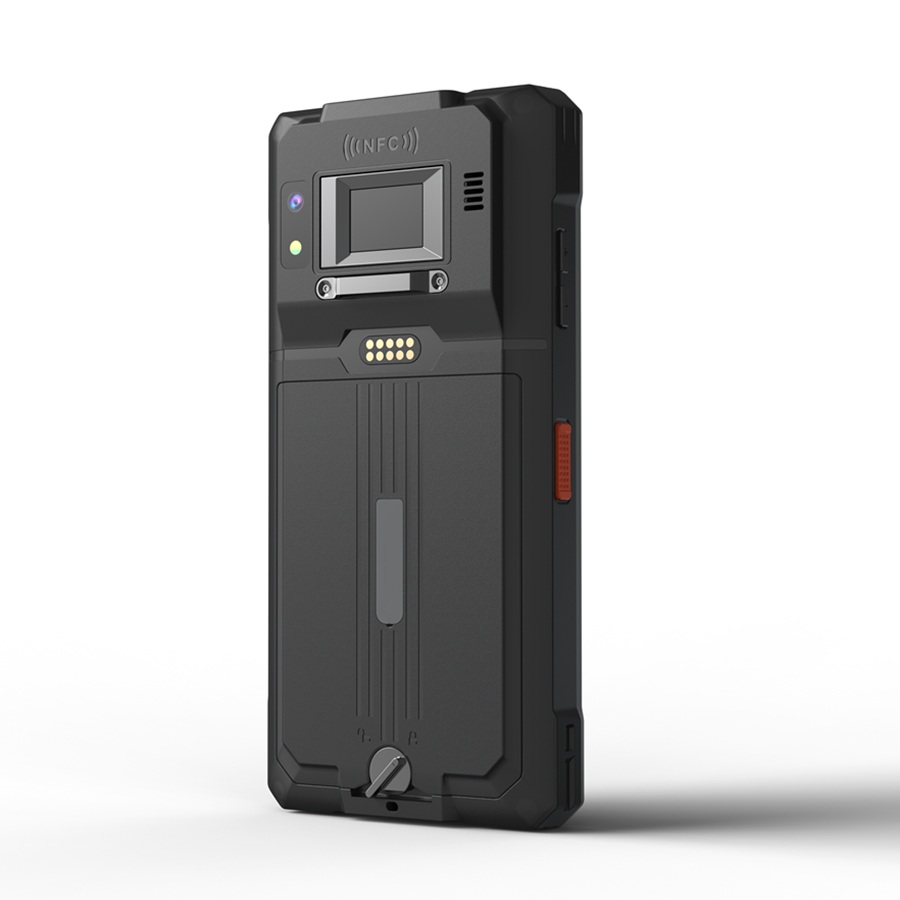

- Fingerprint Recognition Module
| Parameter |
Specification |
| Certification |
Ministry of Public Security certified fingerprint module |
| Sensor Resolution |
508 DPI |
| Effective Pixels |
256 × 360 |
| Position |
Rear-facing fingerprint sensor for ergonomic one-handed operation |
Provides secure user authentication for restricted applications, time attendance, and identity verification
| Parameter |
Specification |
| Supported Engines |
Honeywell HS7, New World N1, Zebra 4710, and other mainstream scanning modules |
| Scan Accuracy |
3mil – 5mil |
| 1D Symbologies |
Codabar, Code 11, Code 39, Code 93, Code 128, EAN-8/13, Industrial 2 of 5, Interleaved 2 of 5, MSI, GS1 DataBar, UPC-A/E, and more |
| 2D Symbologies |
PDF417, MicroPDF417, Aztec, Data Matrix, MaxiCode, QR Code, and more |
| Symbologies |
- |
Perfect for inventory management, retail checkout, and field data collection
| Parameter |
Specification |
| Frequency |
13.56 MHz |
| Read/Write Distance |
0–30 mm |
| Protocols |
ISO 14443A/B, ISO 15693 |
| Supported Tags |
M1 cards (S50/S70), CPU cards, NFC tags |
Enables contactless payment, access control, and proximity identification
- Body Temperature Measurement Module
| Parameter |
Specification |
| Type |
Single-point temperature sensor |
| Measurement Distance |
Up to 5 cm |
| Accuracy |
±0.5°C (reference electronic thermometer) |
Ideal for health screening and access control during pandemics
- Infrared Thermal Imaging Module
| Parameter |
Specification |
| Data Format |
Temperature matrix |
| Frame Rate |
25 FPS |
| Temperature Measurement Accuracy |
±2°C or ±2% |
| Temperature Measurement Range |
-20°C to +550°C (dual-gear auto-switching: 20–150°C, 100–550°C) |
| Measurement Distance |
0.5–2.5 m (distance information required) |
| Operating Temperature |
-20°C to +60°C |
| Storage Temperature |
-40°C to +85°C |
Perfect for industrial inspection, predictive maintenance, and building diagnostics
- High-Precision Positioning Module (Optional)
| Parameter |
Specification |
| System Support |
BDS / GPS / GLONASS multi-constellation |
| Positioning Technology |
Single-point positioning + RTK differential positioning (dual-frequency, multi-constellation) |
| Antenna |
Quadrifilar helix antenna HAC26A (supports L1/L2 dual-frequency) |
| Sensitivity |
Tracking: -163 dBm; Acquisition: -147 dBm |
| Applications |
Smart city, precision agriculture, surveying, and mapping |
Enables centimeter-level accuracy for GIS data collection and precision applications
Data Communication
Wireless Connectivity
| Parameter |
Specification |
| 4G Network |
Full network support: Telecom 4G, Mobile 4G, Unicom 4G GSM: B2/B3/B5/B8 WCDMA: B1/B5/B8 FDD: B1/B2/B3/B5/B7/B8/B20/B28a&b TDD: B38/B39/B40/B41 |
| Wi-Fi |
IEEE 802.11 a/b/g/n; Dual-band 2.4 GHz / 5 GHz |
| Bluetooth |
Bluetooth 4.0 with BLE |
| GPS |
GPS, GLONASS, Beidou; Accuracy < 10 m; Supports AGPS |
Development Support
| Parameter |
Specification |
| SDK |
Software Development Kit available |
| Development Language |
Java |
| Development Tool |
Android Studio |
Interfaces
| Interface |
Description |
| USB |
Type-C × 1 (supports charging and data transfer) |
| OTG |
Supported |
| POGO Pin |
For peripheral connectivity and charging cradle |
