Engineered for High-Performance Item-Level Tracking in Retail & Logistics
The T9727L is a high-sensitivity, general-purpose UHF RFID label built on the powerful NXP UCODE 9 IC. Its optimized aluminum-etched antenna design delivers consistent performance across global frequencies, making it an ideal, cost-effective solution for high-volume item-level tracking in retail apparel, logistics parcels, and library management. Compliant with the latest EPC Gen2 V2.1 standard, it supports advanced features like tamper detection and sensor emulation.
Retail Inventory Management: Apparel, cosmetics, electronics
Loyalty & Authentication: NFC-tap enablement for smartphones
Logistics Parcel Tracking: Sortation, shipping labels, cross-docking
Library Media Management: Books, DVDs, asset tracking
This label is specifically engineered to meet the demanding requirements of modern retail:
Item-level tracking: From distribution center to store floor to customer.
NXP UCODE 9 IC: Offers enhanced sensitivity and anti-collision performance for reading dense populations of items.
✅ Retail-Optimized Performance
Superior read reliability on RF-unfriendly materials (e.g., liquid bottles, denim), enabling 99.9% inventory accuracy for smart shelves and checkout tunnels.
✅ Global Compliance Ready
Tuned for Walmart ARC, GS1, and ARA requirements. Ideal for serialized retail item tracking and consumer engagement applications.
✅ High-Temp Adhesive & Durability
Features a permanent hotmelt adhesive that withstands standard logistics handling, plus a coated paper face stock for high-quality thermal transfer printing.
✅ Supply Chain Efficiency
Shipped on 3" cores, compatible with Zebra, SATO, and Honeywell RFID printers. Pre-encoded TID and support for bulk serialization.
Printing: Thermal-transfer printable area; barcode, QR code, logo, variable data
Encoding: Pre-encoded EPC & User memory blocks (GS1/GTIN compliant)
Sequential Serialization: Bulk encoding with unique EPC ranges
Slitting: Custom roll widths and lengths (MOQ-dependent)

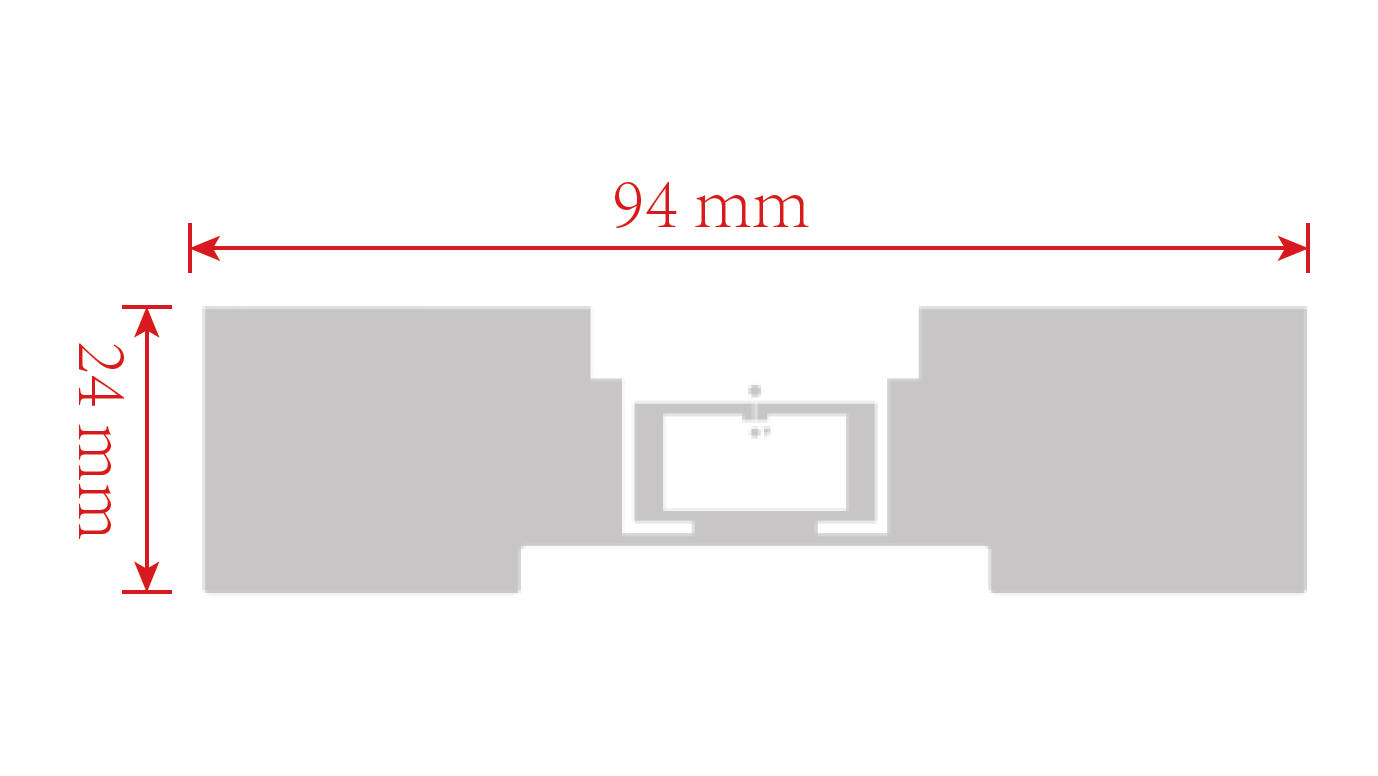

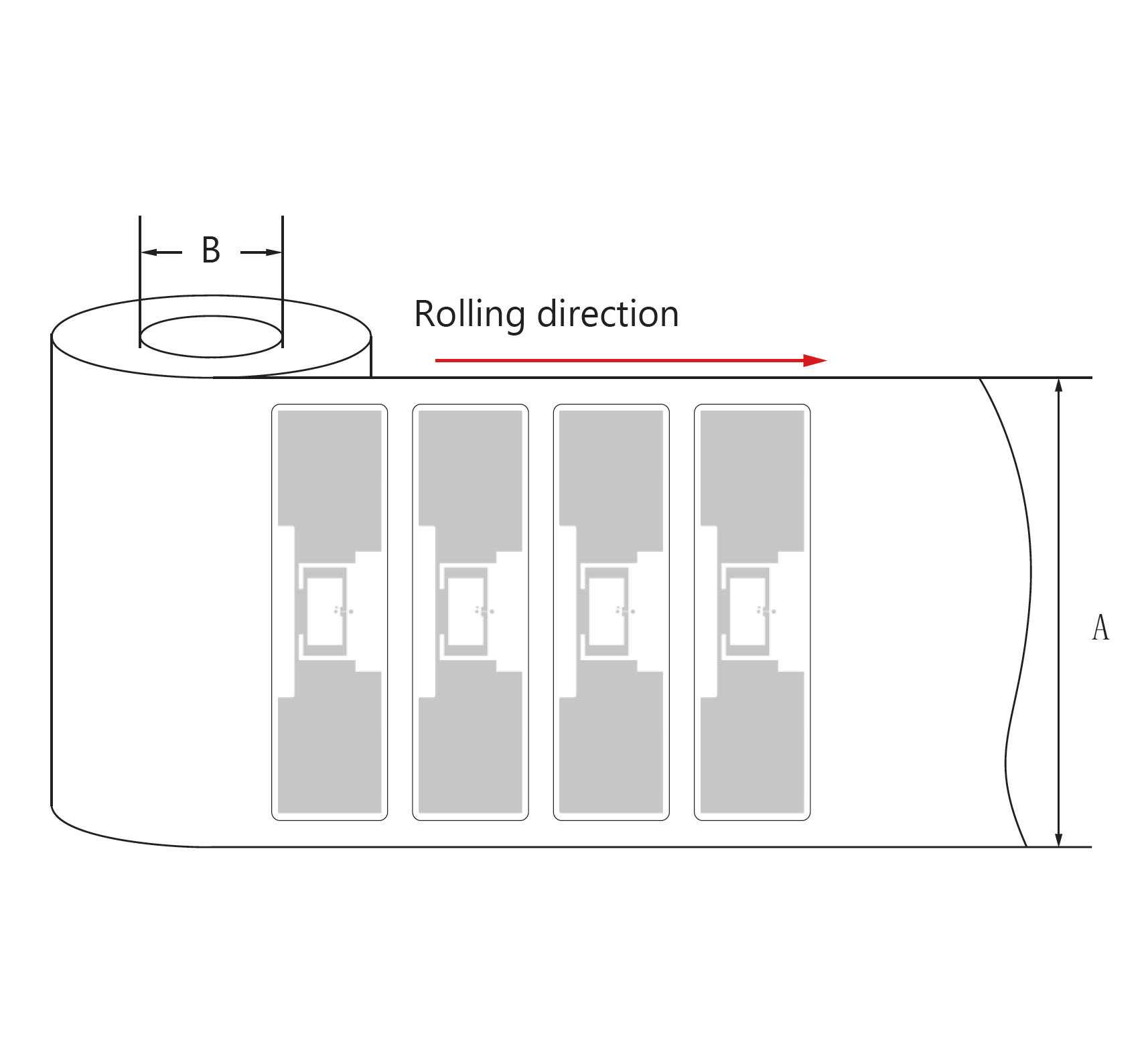

Appearance and Structural Diagram

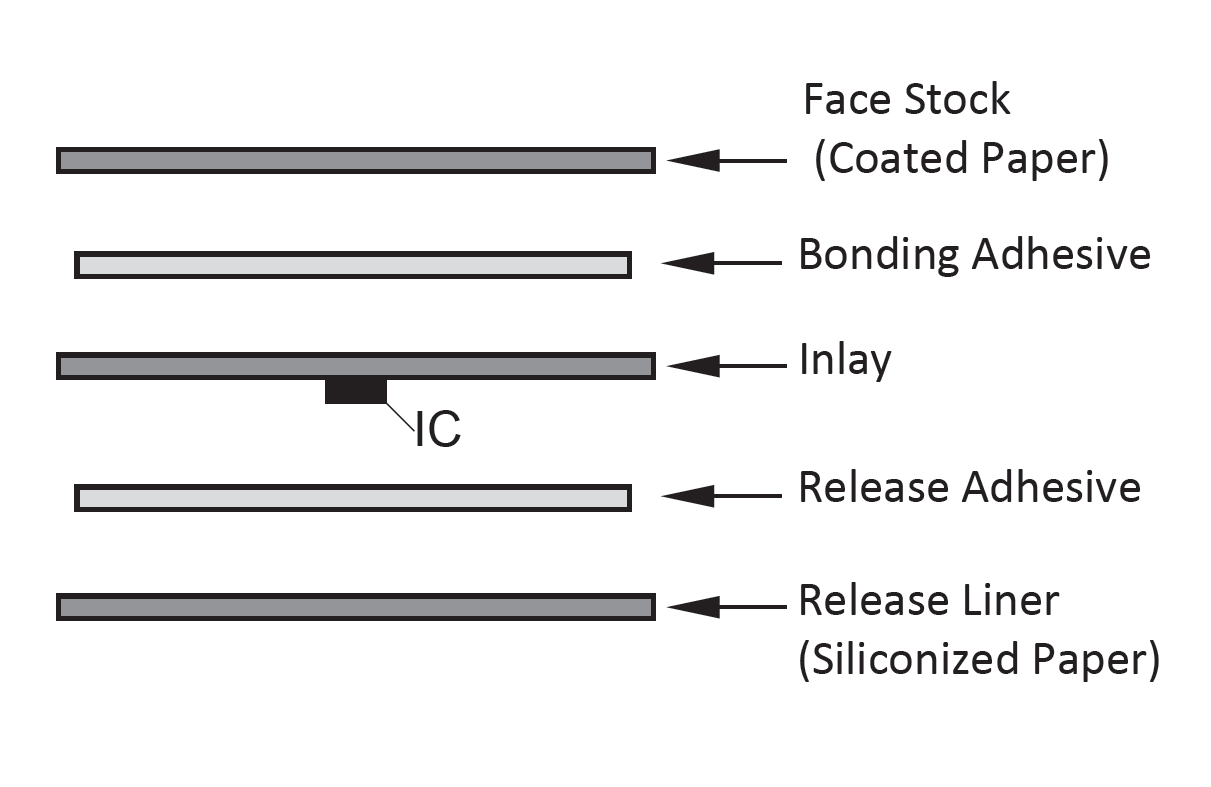

RFID Tag Layer Structure:
Face Stock (Coated Paper)：Top printable layer of the tag to provide printable surface and environmental protection
Bonding Adhesive: Permanent adhesive for inlay attachment, to secures inlay to face stock permanently
Inlay → Inlay (Industry term - retain original): RFID chip + antenna embedded in substrate,
which contains the RFID IC and antenna (critical functional component)
Release Adhesive: Temporary adhesive for liner backing, which allows temporary attachment to liner
Release Liner (Siliconized Paper): Protective backing paper peeled during application, to enable die-cutting and protects adhesive until use
| Attribute | Specification |
|---|---|
| Model | T9727L |
| Construction | Top: Coated Paper / Adhesive: Hotmelt |
| Inlay: PET 50μm + Aluminum Etching (10μm) | |
| Dimensions (L×W) | 97 × 27 mm (±0.7 mm) |
| Inlay Placement | Centered |
| Paper Core | 76.2 mm (3") |
| Roll Width (Core) | 103 mm (±1.0 mm) |
| Attribute | Specification |
|---|---|
| Protocol | EPC Class 1 Gen 2 V2.1 (ISO 18000-63) |
| IC | NXP UCODE 9 |
| Memory | EPC: 96 bits (Read/Write) |
| TID: 96 bits (Unique, Read-Only) | |
| User: 224 bits (Read/Write) | |
| Frequency Range | 840 – 960 MHz (Global Operation) |
| Read Sensitivity | ≤ -18.5 dBm (Typical) |
| Applicable Surfaces | Non-Metal & Curved Surfaces |
| Parameter | Detail |
|---|---|
| Qty per Roll | 2,000 labels |
| Rolls per Carton | 4 (8,000 labels total) |
| Core Diameter | 76.2 mm (3") |
| Packing Protection | Anti-static EVA foam on cores |
| Lead Time (Standard) | 7-10 days |
| Sample Availability | Free (up to 10 labels, express shipping available) |
