T3313L-i2208 UHF RFID Tag
An industrial-grade RFID sticker/label engineered for enterprise asset tracking. Based on RAIN RFID, EPC Global GEN2V2, ISO18000-6C international protocol. Featuring high-sensitivity Impinj chip technology and durable construction, it delivers reliable performance in demanding environments.
1. Ideal Applications:
• Assets management
• Documents management
• Equipment management
Optimized for seamless integration with fixed and handheld readers to streamline inventory operations.
Appearance and Structural Diagram

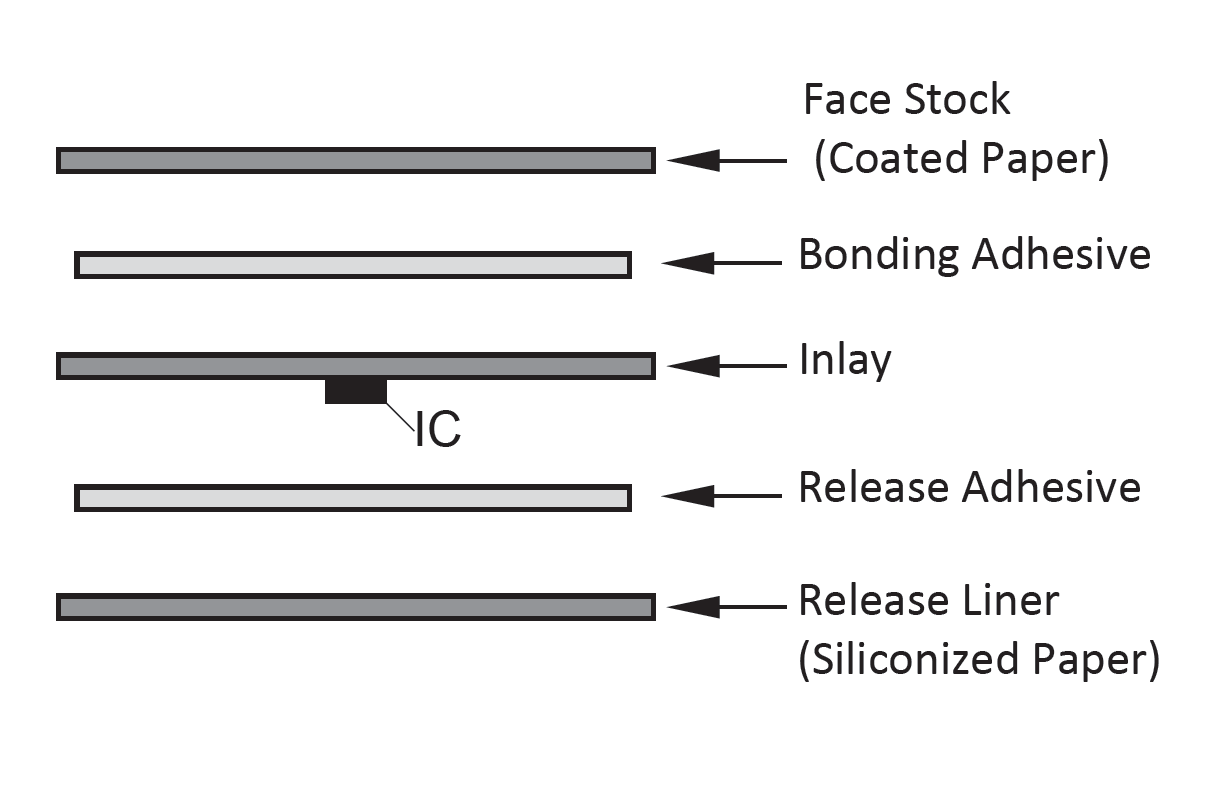

RFID Tag Layer Structure:
Face Stock (Coated Paper):Top printable layer of the tag,to provide printable surface and environmental protection
Bonding Adhesive: Permanent adhesive for inlay attachment, to secures inlay to face stock permanently
Inlay → Inlay (Industry term - retain original): RFID chip + antenna embedded in substrate,
which contains the RFID IC and antenna (critical functional component)
Release Adhesive: Temporary adhesive for liner backing, which allows temporary attachment to liner
Release Liner (Siliconized Paper): Protective backing paper peeled during application, to enable die-cutting and protects adhesive until use
Manufacturer / Chip: |
Impinj/M730 |
Substrate Material: |
PET or Coated paper |
Compliance Standards: |
ISO/IEC 18000-63(formerly 18000-6C) and EPC Gen2 |
Antenna Fabrication Process: |
Al(10μm) + PET (50μm) → Etched Aluminum (10μm) + PET (50μm) |
Operating Frequency Range: |
860~960MHz |
IC Memory Section: |
EPC: 128Bits TID:48Bits Unique TID:96Bits Kill password: 32bit Access password:32Bits User Data: None |
Sensitivity: |
-19db |
||
Working Mode: |
Passive |
||
RFID performance: |
Reading range:0-6m Writing range:0-3m |
Environment: |
Working temperature: -25℃~70℃ Storge temperature: -45℃~80℃ |
Label Size: |
33*13mm |

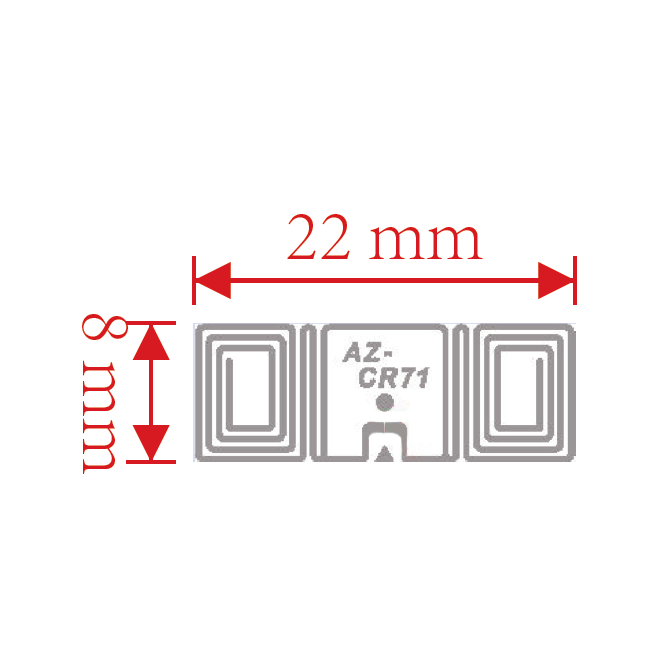

Antenna Size: |
22**mm |
Write Endurance: |
100,000 cycles |
Installing: |
Self-adhesive |
IC Endurance: |
Data Retention: 10 years |
Weight: |
≈1g/pcs ≈2Kgs/roll with bag |
Polarization: |
Liner polarization |
Packing: |
5,000pcs/roll 4 rolls/carton |
Finished Product Illustration

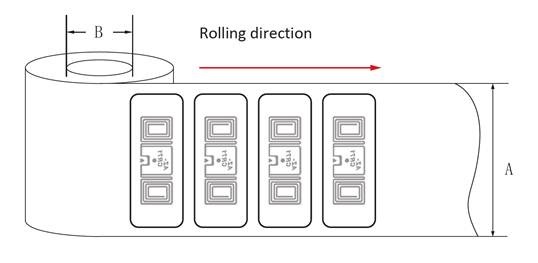

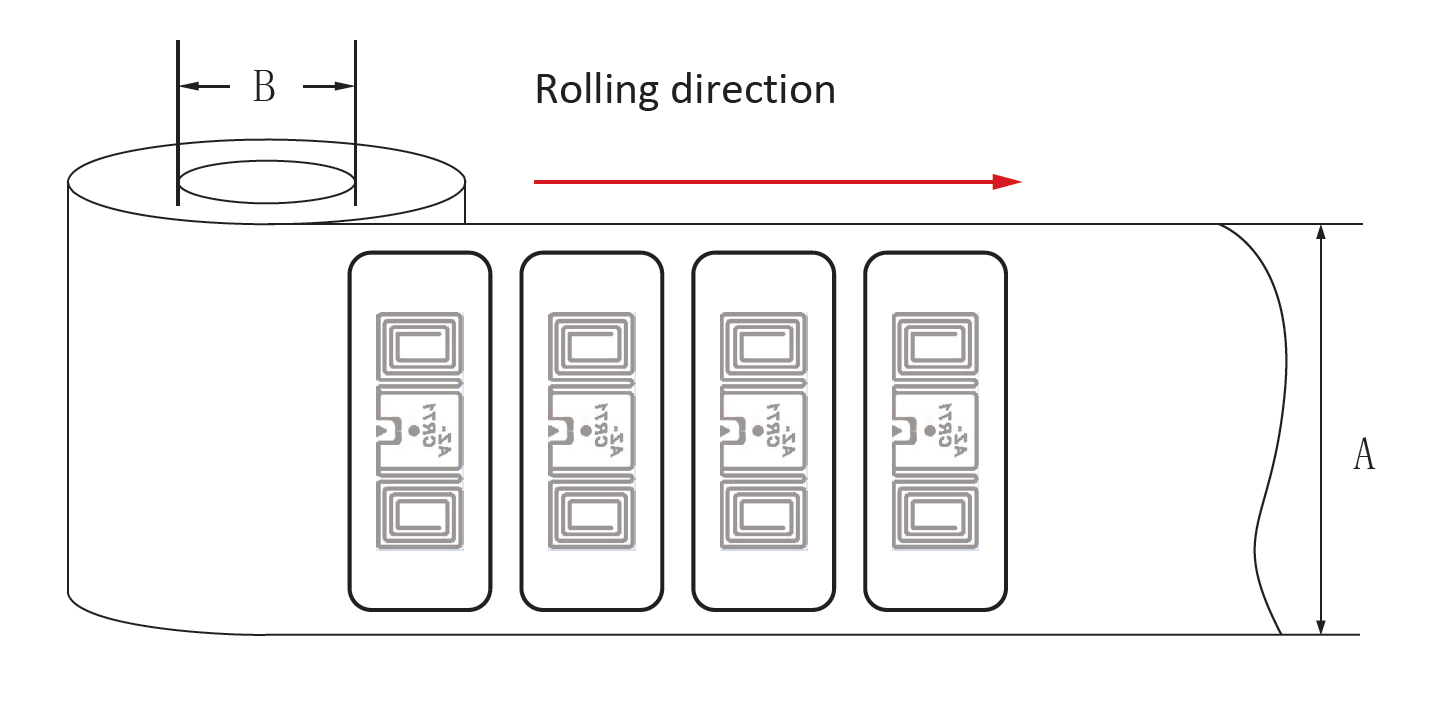

Winding Specification:
Core Width: 40mm ±1.0mm, Core Inner Diameter: 76.2mm ±0.50mm

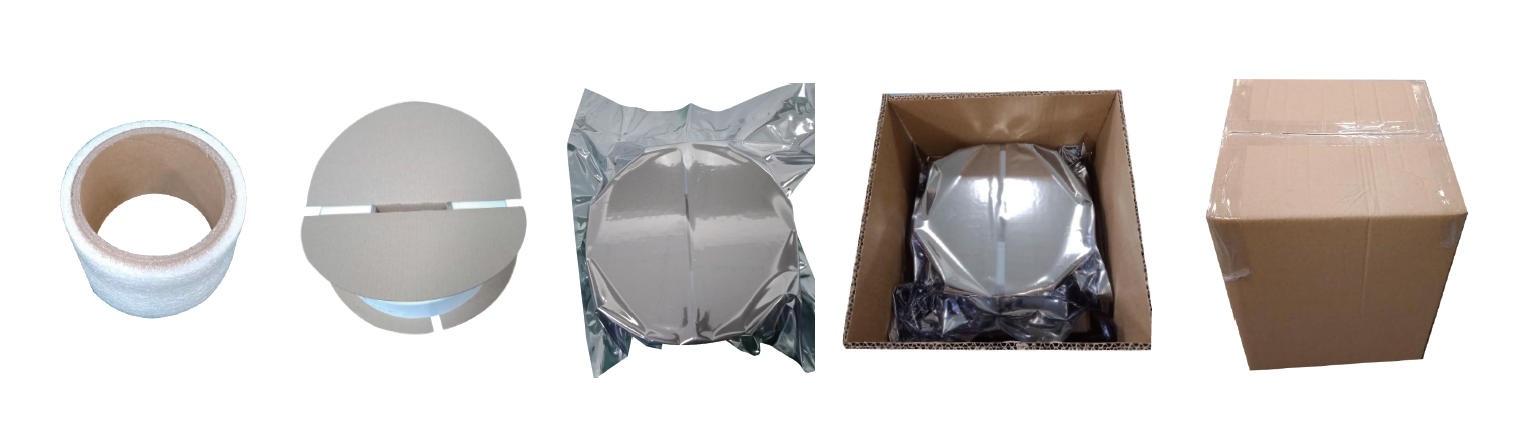

Packing
All product cores must be wrapped with ESD foam with shielding layer (as shown below) to mitigate mechanical shock to ICs during transportation.
