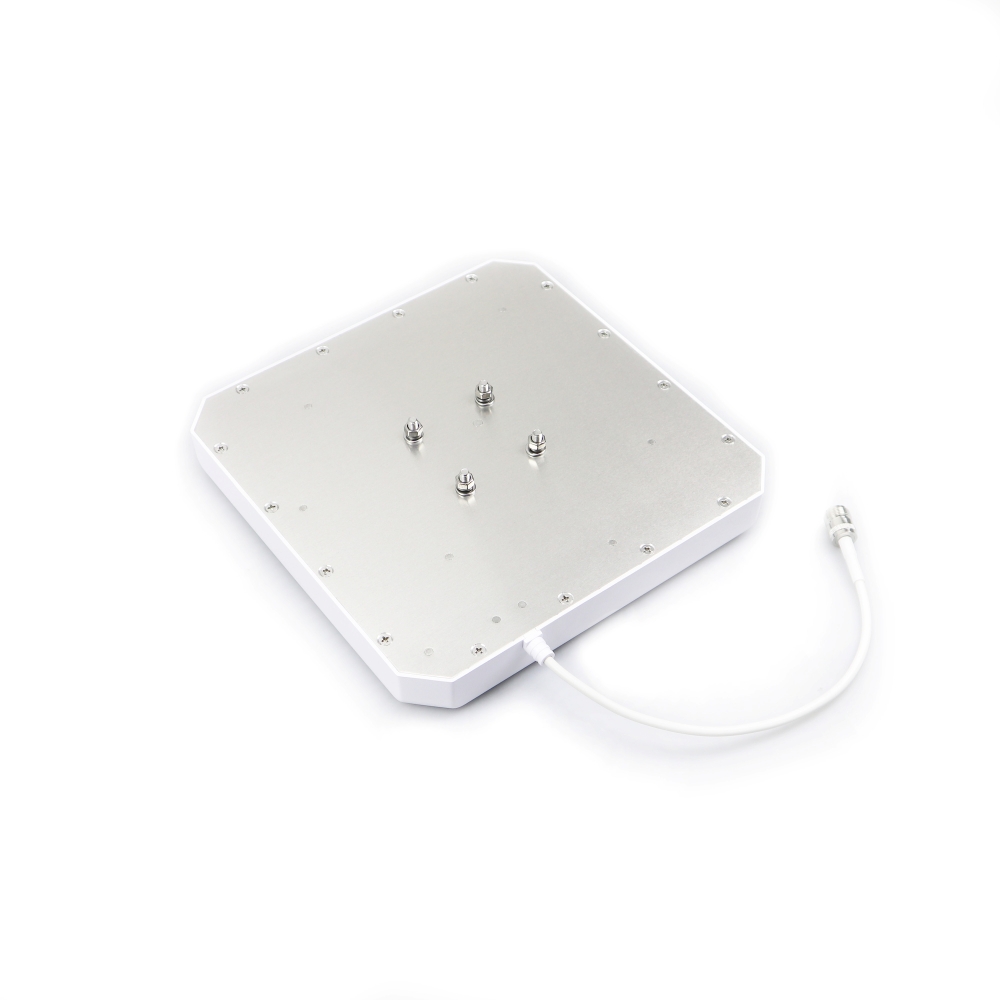

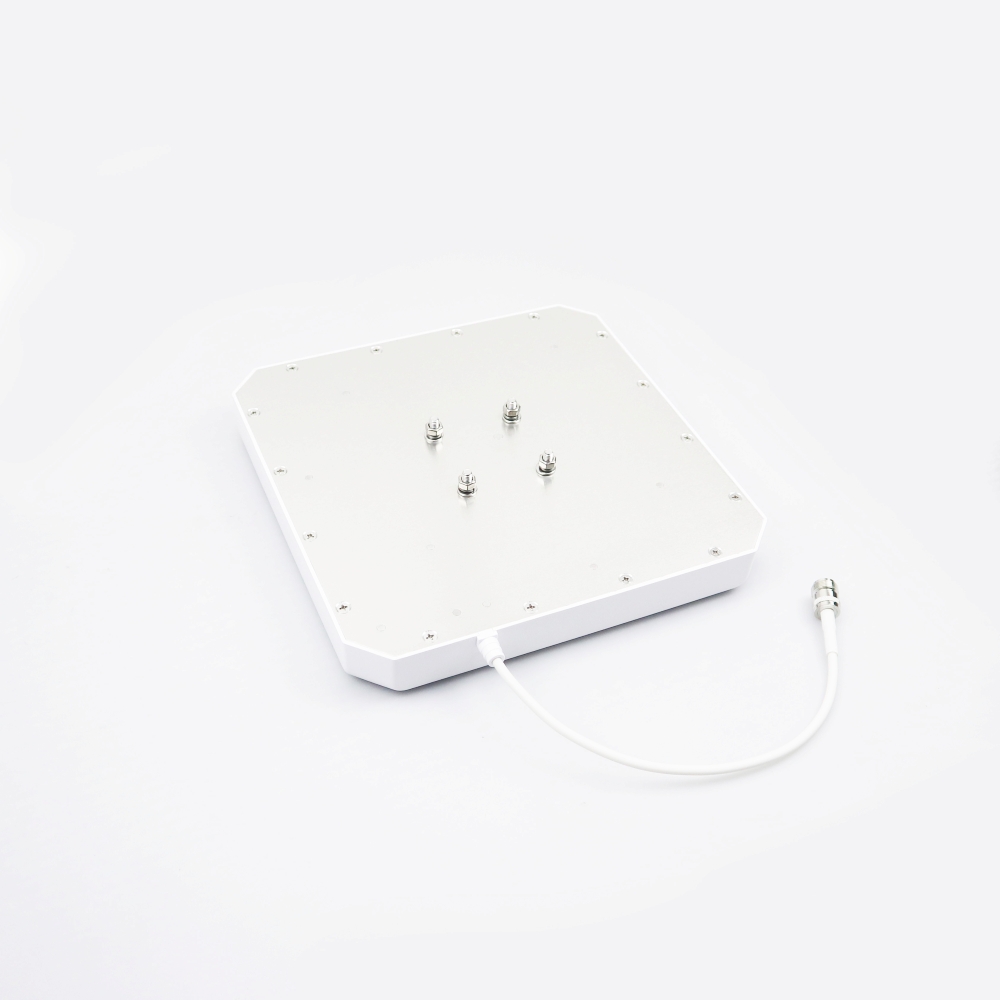

The SA09A 9dBi UHF RFID Antenna delivers precision-engineered performance for demanding RFID deployments. Featuring ultra-low VSWR (≤1.3) and optimized 65°×65° beamwidth, it achieves exceptional read consistency in both 865-868MHz (ETSI) and 902-928MHz (FCC) bands. Its IP65-rated aluminum-PC/ABS construction withstands extreme temperatures (-40°C to 60°C), while the N-Female connector with DC grounding ensures lightning protection in outdoor installations.
9dBi High Gain: 20% longer read distance vs. standard 6dBi antennas
Circular Polarization: Consistent performance for multi-orientation tags
IP65 Weatherproofing: Resists dust/water ingress in ports, yards, or rooftops
-40°C to 60°C Operation: Reliable in arctic cold or desert heat
Side/Back Connector Options: Adapts to space-constrained installations
φ40-50mm Pole Mount: Universal compatibility with industry-standard brackets
| Industry | Application Scenario | SA09A Solution |
|---|---|---|
| 🚚 Logistics | Yard management gates | 20m container ID verification |
| 🏭 Manufacturing | Production line monitoring | High-speed tag reading in metal-rich environments |
| 🚗 Smart Parking |
Overhead ETC gantries | All-weather vehicle identification |
| ⚡ Utilities | Substation equipment tracking | EMI-resistant asset scanning |
| Parameter | Specification |
|---|---|
| Frequency Range | 865-868MHz or 902-928MHz |
| Gain | 9dBi |

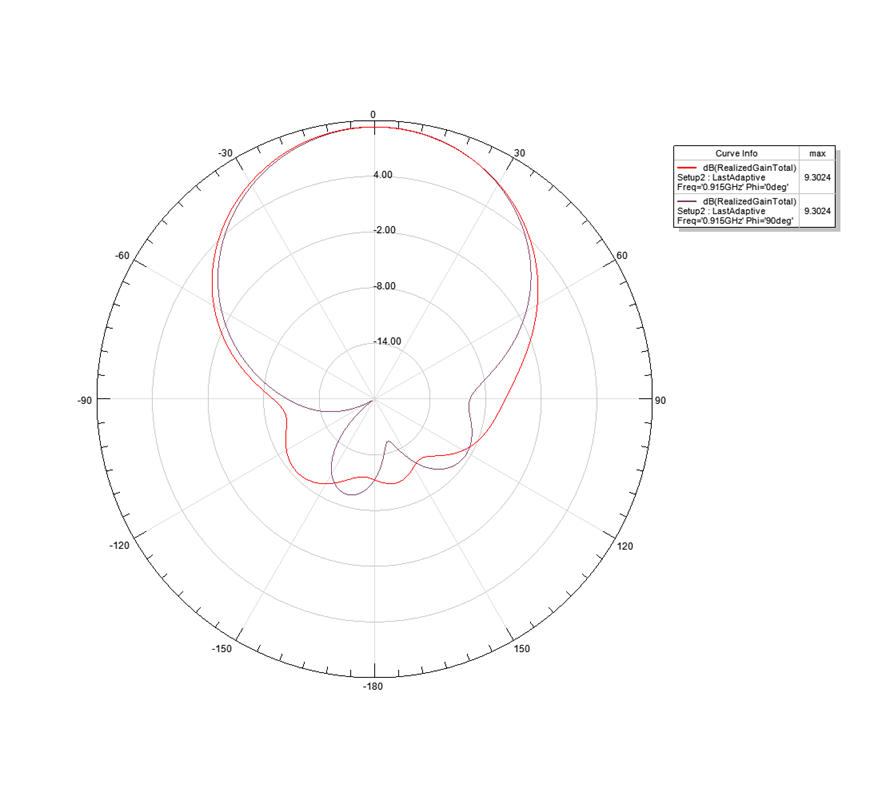

| Beamwidth | 65° (H) × 65° (V) |
| VSWR | ≤1.3 |
| Polarization | Circular (axial ratio ≤2dB) |
| Max Power Handling | 50W |
| Lightning Protection | DC Ground |
| Parameter | Specification |
|---|---|
| Connector | N-Female (side/back optional) |

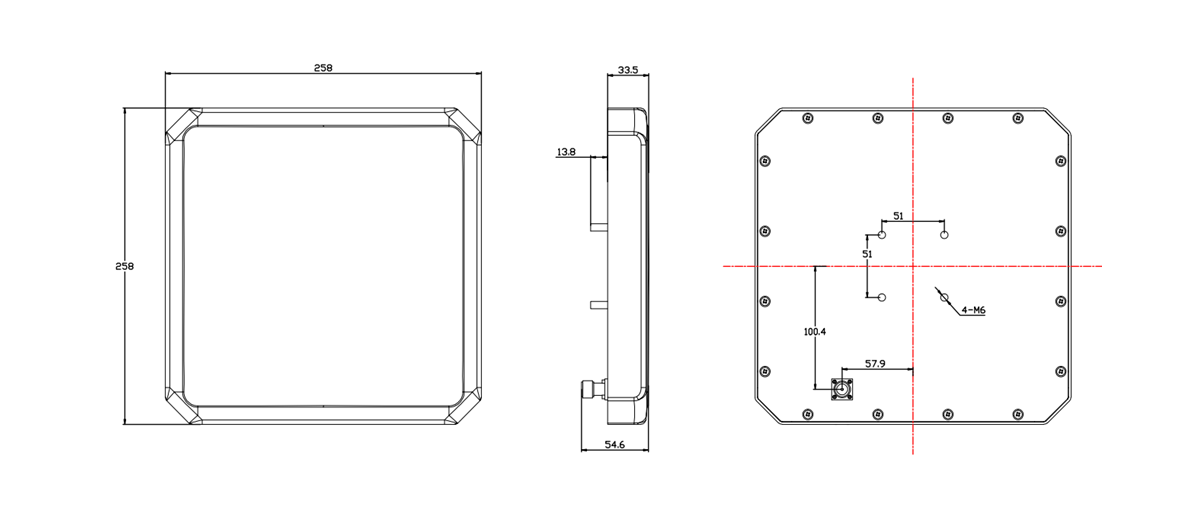

| Dimensions | 258×258×33.5 mm |
| Weight | 0.85 kg |
| Radome Material | PC+ABS (UV-resistant) |
| Reflector | Aluminum alloy |
| IP Rating | IP65 |
| Operating Temperature | -40°C to +60°C |
| Pole Mount | φ40-50mm |
