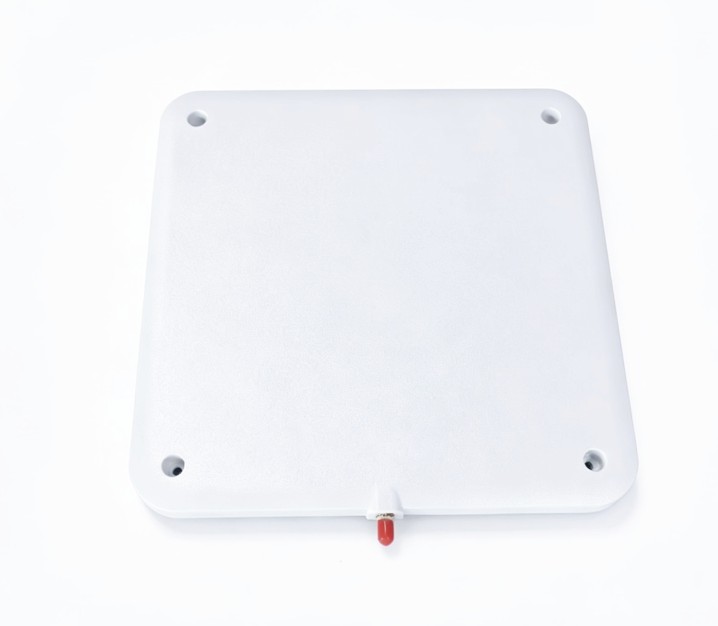

High-Temperature Resistant & IP67-Rated UHF RFID Antenna AN05s

The AN08s is a high‑performance, ultra‑thin circularly polarized UHF RFID antenna engineered for the ETSI band (865–868 MHz), FCC band optional (902-928MHz). With a low‑profile 15 mm thickness, a sleek white UV‑resistant PC radome, and an IP67 environmental rating, the AN08s is ideal for both space‑sensitive indoor installations and demanding outdoor environments such as vehicle portals, waste collection trucks, and dock doors.   The AN08s delivers 8.5 dBic typical gain – significantly higher than standard compact antennas – ensuring longer read ranges and more reliable tag capture. Its wide 68° beamwidth, excellent VSWR ≤1.3, and superior axial ratio ≤2 dB provide uniform coverage and consistent performance regardless of tag orientation. Advantages ▸ Back with a semi-hidden cable tie hole ▸Ultra-thin, far-field design ▸ Protective class IP67 for both outdoor indoor sue ▸ Laser the logo and number OEM/OEM supportable

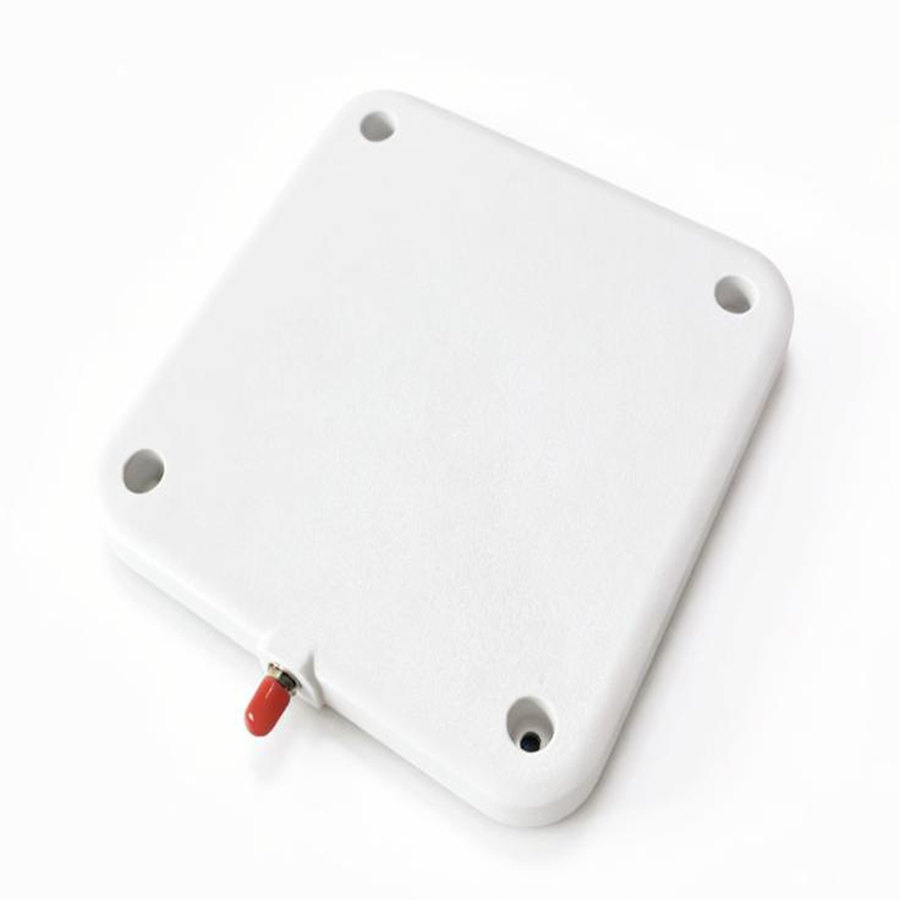

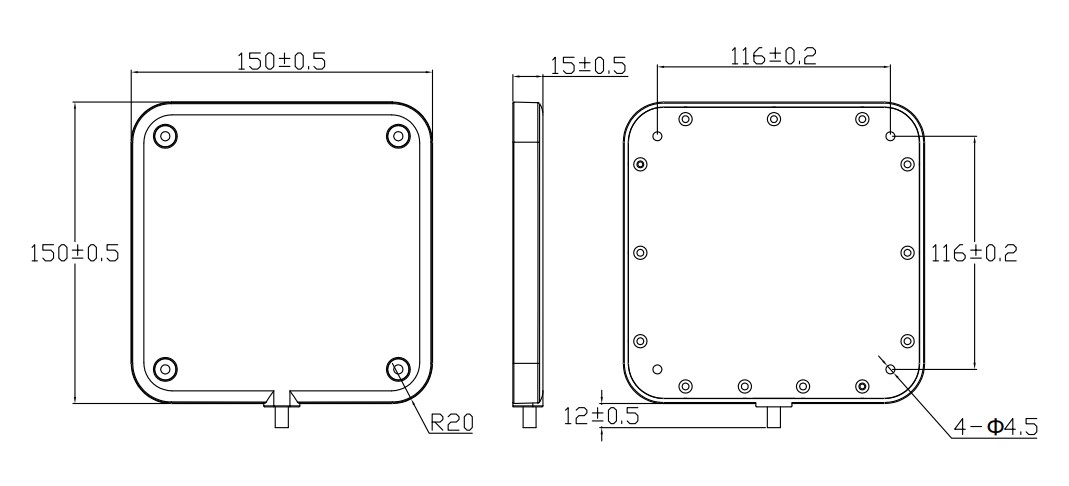

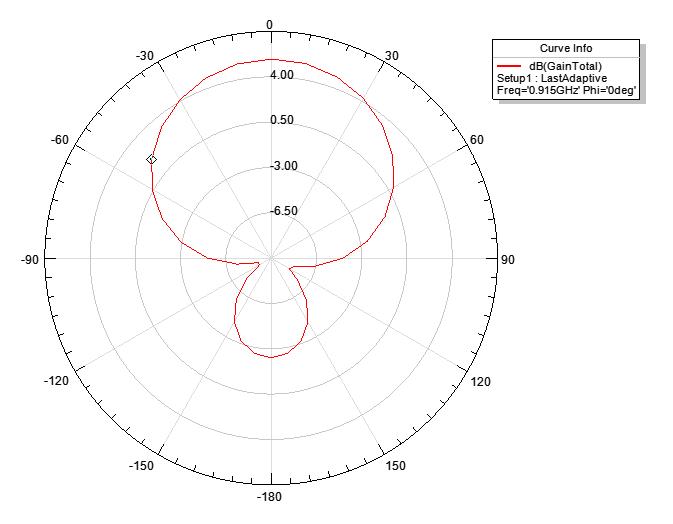

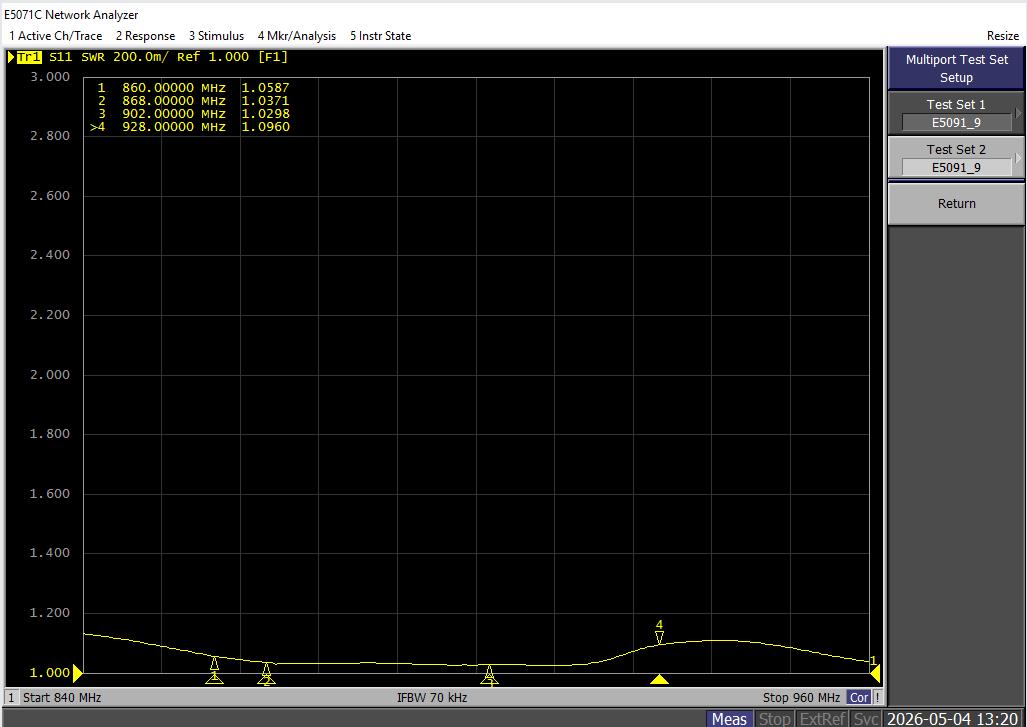

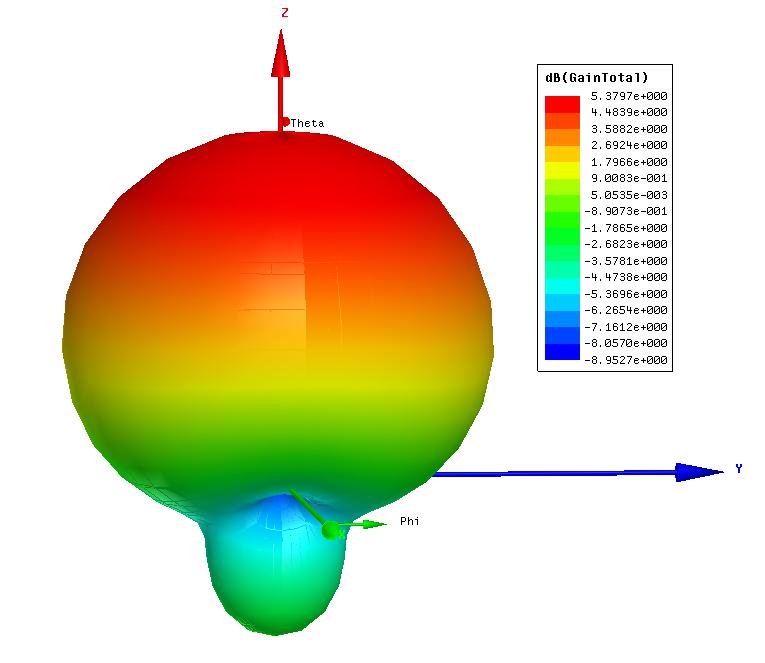

The AN05s is a compact, ultrathin circularly polarized UHF RFID antenna engineered for the ETSI band (865–868 MHz). With a thickness of only 15 mm, a clean white ASA casing, and IP67 rating, the AN05s is ideal for space constrained indoor environments as well as outdoor installations that demand waterproofing and dust protection.   The AN05s delivers 5.5 dBi typical gain, a wide 100° beamwidth, and an excellent VSWR ≤1.2 – ensuring reliable tag reads in retail, access control, inventory management, and waste management applications. Advantages ▸ Back with a semi-hidden cable tie hole ▸Ultra-thin, far-field design ▸ Protective class IP67 for both outdoor indoor sue ▸ Laser the logo and number OEM/OEM supportable

The AN100m is a high-performance UHF RFID mat antenna specifically engineered for near-field, high-density tag reading applications. Designed to be placed on floors, conveyor belts, or embedded in pathways, this antenna provides reliable, high-speed identification of RFID-tagged items passing over or near its surface. With its low-profile, ruggedized construction and IP67 waterproof rating, the AN100m is ideal for demanding environments such as marathon timing points, warehouse dock doors, sortation conveyor tunnels, and retail exit portals. Available in multiple lengths (1m, 2m, 3m, 4m), it offers scalable coverage for applications of any size.   Key Differentiators: Circular polarization for omni-directional tag reading regardless of orientation Ultra-low profile (22mm thickness) minimizes trip hazards and installation complexity Multiple cable access points (1 per meter) for flexible system configuration Industrial-grade durability withstands heavy foot traffic and vehicle crossings

The SA09A 9dBi UHF RFID Antenna delivers precision-engineered performance for demanding RFID deployments. Featuring ultra-low VSWR (≤1.3) and optimized 65°×65° beamwidth, it achieves exceptional read consistency in both 865-868MHz (ETSI) and 902-928MHz (FCC) bands. Its IP65-rated aluminum-PC/ABS construction withstands extreme temperatures (-40°C to 60°C), while the N-Female connector with DC grounding ensures lightning protection in outdoor installations. ✓ Extended Read Range 9dBi High Gain: 20% longer read distance vs. standard 6dBi antennas Circular Polarization: Consistent performance for multi-orientation tags ✓ Industrial Resilience IP65 Weatherproofing: Resists dust/water ingress in ports, yards, or rooftops -40°C to 60°C Operation: Reliable in arctic cold or desert heat ✓ Deployment Flexibility Side/Back Connector Options: Adapts to space-constrained installations φ40-50mm Pole Mount: Universal compatibility with industry-standard brackets

The SA06A 6dBi UHF RFID Antenna delivers precision-engineered performance for demanding RFID deployments. Featuring ultra-low VSWR (≤1.3) and optimized 65°×65° beamwidth, it achieves exceptional read consistency in both 865-868MHz (ETSI) and 902-928MHz (FCC) bands. Its IP65-rated aluminum-PC/ABS construction withstands extreme temperatures (-40°C to 60°C), while the N-Female connector with DC grounding ensures lightning protection in outdoor installations. ✓ Extended Read Range 6dBi High Gain:  Circular Polarization: Consistent performance for multi-orientation tags ✓ Industrial Resilience IP65 Weatherproofing: Indoor/Outdoor  -40°C to 60°C Operation: Reliable in arctic cold or desert heat ✓ Deployment Flexibility Side/Back Connector Options: Adapts to space-constrained installations φ30-50mm Pole Mount: Universal compatibility with industry-standard brackets

The AN09A is a most classic 9dbi circular polarization UHF antenna launched by SeeMore. It has round and smooth shape, durable material, which is seamlessly compatible with different brands of RFID readers. Its low profile with high gain, light weight, IP66 protection level, and easy to install,  and excellent performance with max 15m long distance, which makes wide use in different indoor / outdoor applications. Key Features: Ultra-Long Range Recognition: Featuring a high gain of 9dBi, the antenna achieves a read range of up to 15 meters or more when paired with high-power readers, significantly enhancing data collection efficiency. Omni-Directional Identification: Utilizing an advanced Circular Polarization design, it ensures precise reading regardless of tag orientation, effectively minimizing leakage and missed reads. Wide Frequency Support: Covers the full 865MHz - 928MHz spectrum, supporting global UHF RFID standards including ETSI (Europe) and FCC (Americas/Asia). Low VSWR: With a typical VSWR of ≤1.3:1, it guarantees highly efficient power transmission, reducing reader power consumption and extending system service life. Industrial-Grade Durability: Built with an aluminum backplate and a premium PC housing, it boasts an IP66 protection rating. It is UV-resistant and withstands extreme temperature fluctuations, making it ideal for harsh outdoor environments.
