RAIN RFID Hardware Solution for Retail, Logistics & Industrial Sectors

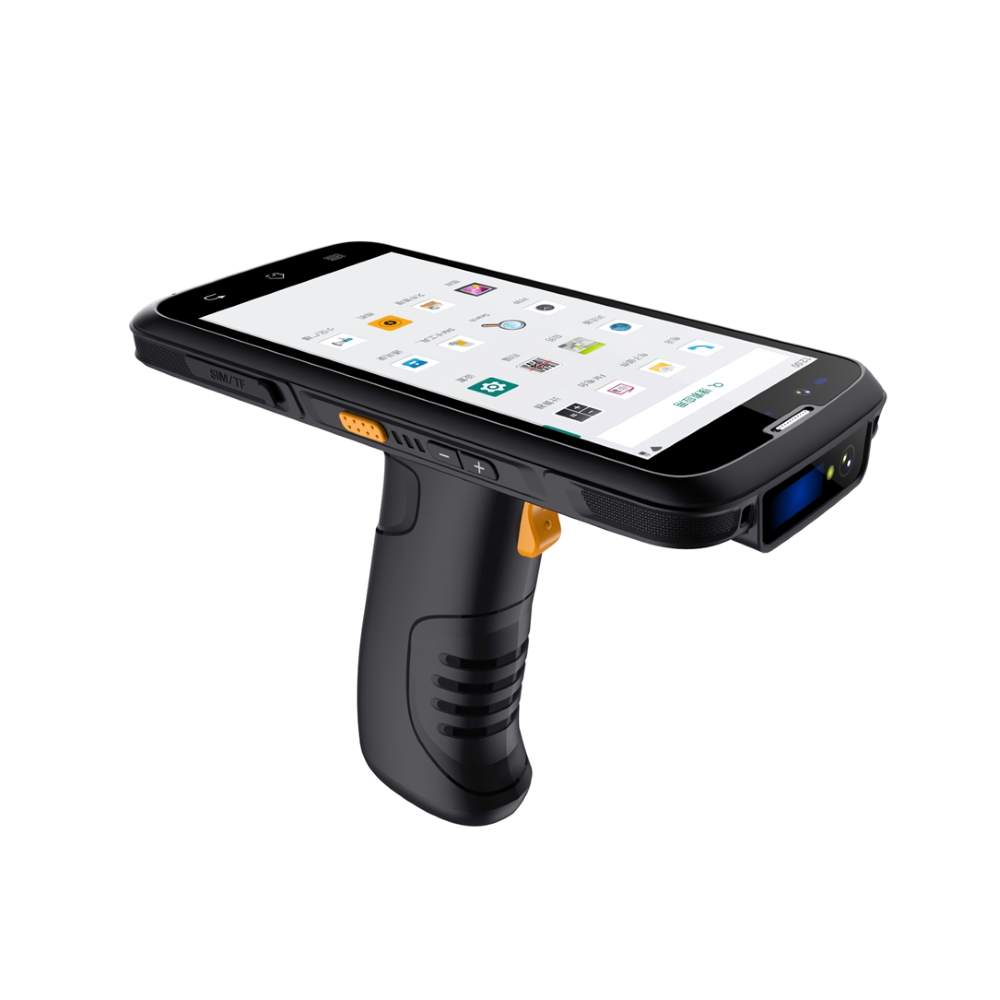

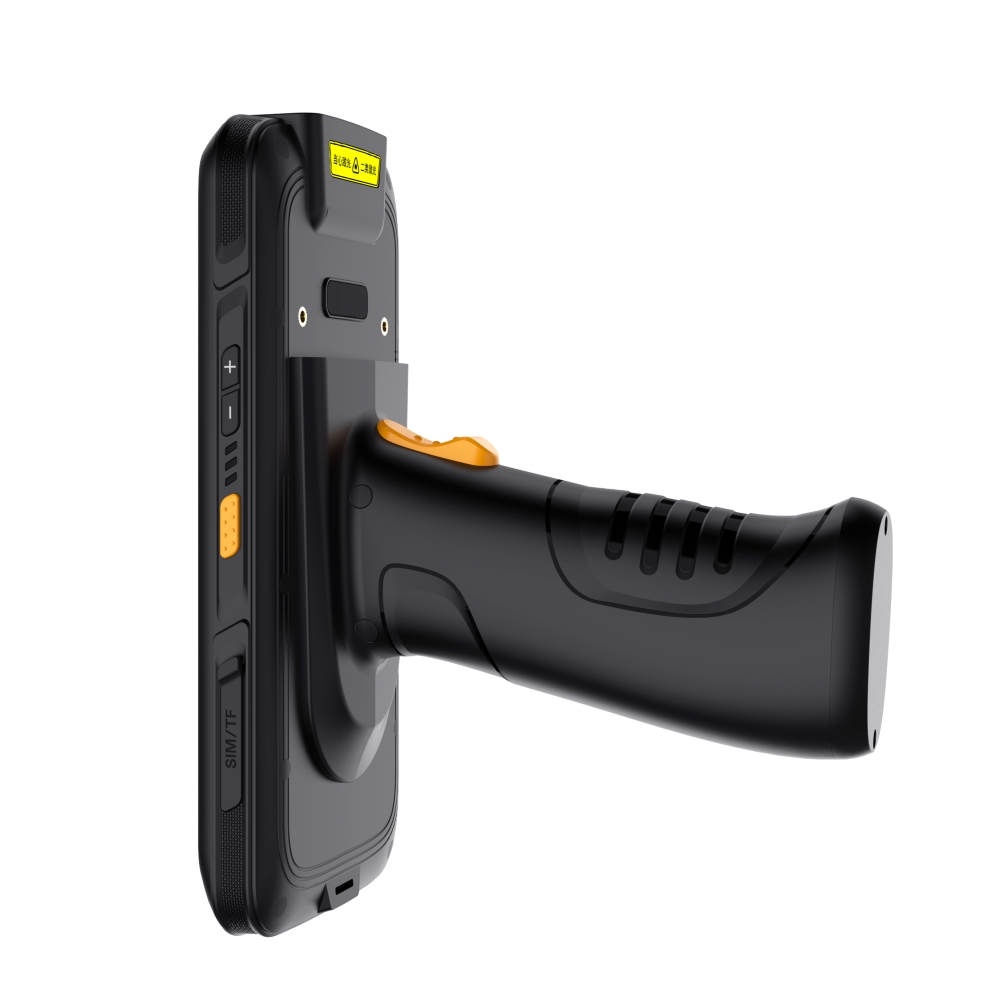

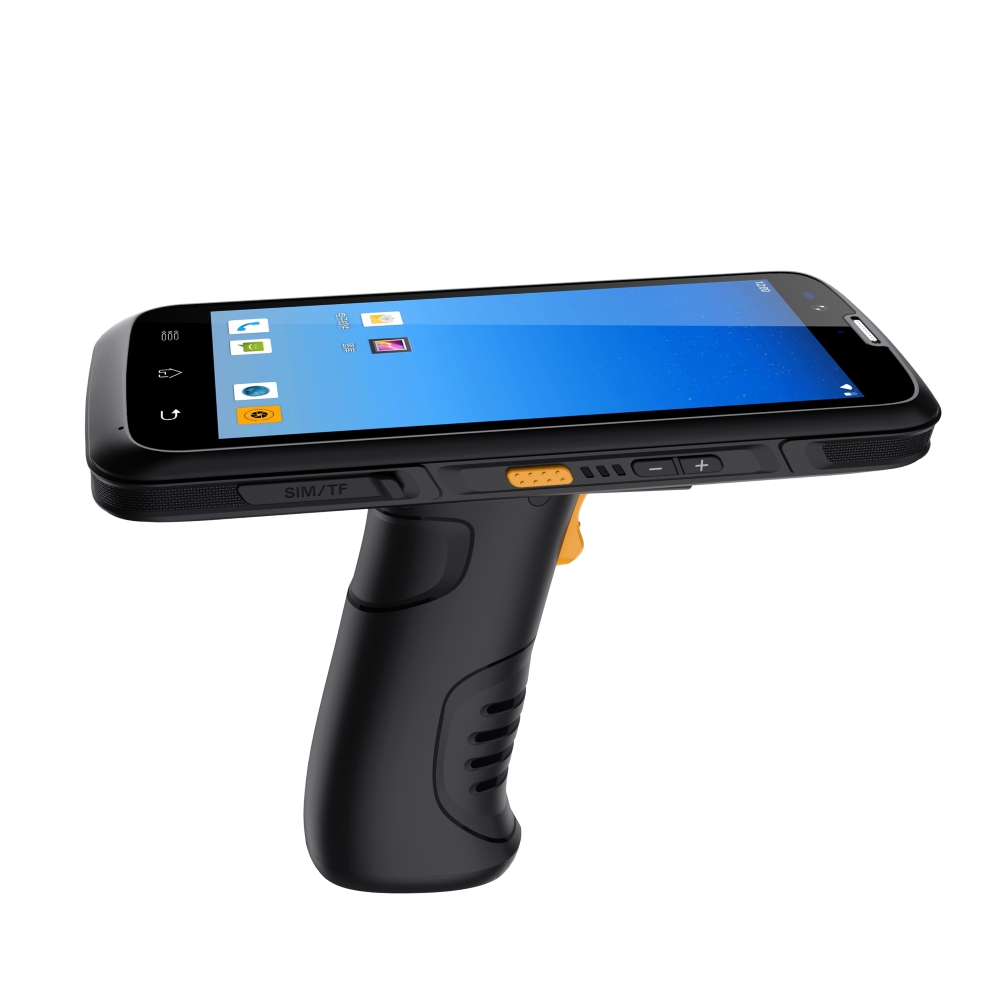

Mobile Barcode NFC Scanner SkyLink H30B

Core Excellence

NFC/HF RFID & Barcode QR code scanning: without UHF version.

Massive 10,000mAh Battery: 8+ hours continuous operation | 300h+ standby

Military-Grade Ruggedness: 1.5m drop resistance | 1,000 tumbles | IP65

High-Speed Data Capture: Optional 5mil barcode scanner (50 scans/sec) + NFC (3-5cm)

Global Connectivity: 4G LTE multi-band | Dual-band Wi-Fi (2.4G/5G) | BT 5.0 | GPS

Free Sample Now

Features
Parameters

Why Choose Industrial Mobile NFC Barcode Scanner SkyLink H30B?

✓ Future-Proof OS : Android 12 ensures app compatibility & security updates:

✓ Reduced TCO (Total Cost of Ownership): High durability minimizes repairs/replacements

✓ Scalable Data Capture: Modular NFC/HF RFID + Barcode options adapt to workflow needs

✓ Ergonomic Productivity: 5.72" HD touchscreen + glove-friendly Corning Gorilla Glass 3

✓ Global Compliance Ready: Pre-configured for regional frequency regulations

✓ Enhanced Field Visibility: 13MP AF camera with flash for visual documentation

✓ Simplified IT Management: Standard Android deployment & maintenance

Transformative Applications of Rugged Android Mobile NFC handheld Barcode scanner SkyLink H30B

Industry	Key Use Cases	Solutions Enabled
? Healthcare	• Medication verification at bedside • Medical device sterilization tracking • Patient wristband scanning	• HIPAA-compliant data logging • NFC-enabled equipment audit trails • Real-time EHR updates via Wi-Fi/4G
? Retail & Hospitality	• Shelf label price checks • NFC loyalty card scanning • Mobile POS payments	• Instant inventory lookup (200+ scans/min) • Touchless customer engagement • Omnichannel order synchronization
? Manufacturing	• Work-in-progress tracking (2D barcodes) • Tool calibration verification • NFC-based access control	• Paperless shop-floor workflows • Equipment maintenance logging • Restricted area security compliance
? Logistics	• Parcel sorting (QR/Code128) • Proof-of-delivery e-signatures • NFC pallet manifests	• Last-meter delivery verification • Cloud-synced shipment records • Chain-of-custody documentation
? Facility Management	• Asset condition audits • Maintenance task validation • NFC-enabled safety checklists	• Centralized asset registers • Compliance reporting automation • Real-time work order updates

Specification

Mainboard		Physical
Operating System	Android 12.0	Dimensions	17883150mm
Processor	MTK 6765- Octa-core, 2.3GHz	Weight	N.W.: 580gs/Pc G.W.:1.0-1.2KGS/Box
Memory	RAM 4GB, 64GB expandable	Main material	Engineering Plastic, PCB, ABS, Aluminum, tempered glass
Expandable	Fingerprint sensor for OEM projects	Screen	5.72'' IPS LTPS 1440*720; Multi-touch panel, Corning grade 3 glass toughened screen
Sensors	Optical distance /gravity /gyroscope / geomagnetic	Speaker/Microphone	Bulit-in, 8Ω/0.8W waterproof horn x 1 Sensitivity: -42db, Output impedance 2.2kΩ
NFC		Docking Station	USB type C for charging, networking, optional
Protocol	ISO/IEC 14443A （ISO14443B or 15693 optional）	Camera	Front: 5MP (FF) Rear: 13MP with PDAF+ LED Flash
Reading range	3-5cm	Battery	3.7V/10000mAh
Barcode or QR Code Scanner		Communication
Scan Engine Imager	T20 or Imported Brand optional	Input/Output	USB Type-C/ OTC
Optical Resolution	5mil or 3mil optional	Wi-Fi	802.11 a/b/g/n/ac (2.4GHz+5GHz)
Scanning speed	50 times/s	Bluetooth	BT5.0(BLE)
Code type	PDF417, MicroPDF417, Data Matrix, Data Matrix InverseMaxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse	2G/3G/4G	GSM/CDMA/CDMA-EVDO/ TD-SCDMA/WCDMA/TDD LTE/FDD LTE
Environment	＜200KHz	GPS	GPS/AGPS/Glonass/ Beidou
Operating/ Storage Temp.	-20 - +50°C / -30 - +60°C	Technical support
Humidity	5-95% non-condensing	For developers	API, SDK, Software, Doc
Sealing	IP65, 150cm free drop, Power on status	For operators	User manual
Power supply	DC 5V 2A/3A	For After sales	Troubleshooting guidance
