RAIN RFID Hardware Solution for Retail, Logistics & Industrial Sectors

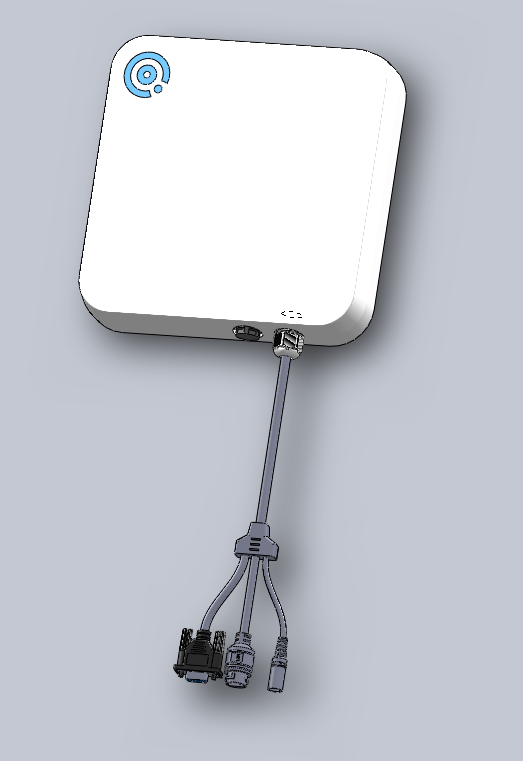

Rugged Integrated RAIN RFID Reader for Demanding Environments Symo IR08F

Name: Rugged Integrated RAIN RFID Reader for Demanding Environments Symo IR08F
Availability: InStock

The Symo IR08 represents the next generation of all-in-one RAIN RFID technology, engineered for superior performance and effortless deployment in the most challenging conditions. This compact yet powerful reader integrates the industry-leading Fudan chipset and a high-gain 8dBi circularly polarized antenna within a single, ultra-durable housing. Designed for logistics, manufacturing, retail, and smart city infrastructure, the IR08 delivers exceptional read accuracy and range while simplifying installation and slashing the total cost of ownership.

Our reader is built to outperform and outlast standard market offerings, with critical enhancements in structural integrity, weatherproofing, and material science, making it the ideal choice for outdoor and industrial applications.

Application Scenarios

Smart City & Sanitation Management: Perfectly suited for installation on garbage trucks to read RFID tags on trash bins. Its excellent seismic resistance, dirt resistance, and IP67 waterproofing ensure reliable performance in this demanding daily-duty cycle.

Parking & Vehicle Access Control: Ideal for license plate recognition systems, gate barriers, and vehicle identification at parking lot entrances/exits. The compact size facilitates discrete installation.

Logistics & Warehouse Management: Deploy at dock doors for automatic pallet and parcel tracking. The rugged IP67 housing withstands dusty and humid warehouse environments.

Retail & Industrial Automation: Enable smart shelves, inventory robots, and automated checkout systems. The high-speed engine ensures accurate reads in dense tag environments.

Ask Free Sample

Features
Parameters

Core Excellence

Unmatched Durability & Anti-Shock	Features reinforced installation poles and high-strength brackets. Built to withstand severe vibrations and impacts, such as those on garbage trucks and in busy industrial settings, far exceeding the mechanical strength of standard readers.
Superior Triple-Protection Waterproofing	Boasts a IP66-67 rating, achieved through a triple-protection design: a dedicated air vent valve, internal drainage ditches, and high-grade waterproof sealing rings. This ensures reliable operation in heavy rain and harsh weather.
Advanced UV-Resistant Housing	ASA housing material offers exceptional UV resistance, preventing yellowing and degradation. It also provides superior performance across a wide temperature range (-40°C to +85°C storage), making it perfect for all-weather outdoor use.
Compact & Lightweight Design	With more compact and lighter than most models, it simplifies installation and reduces shipping costs, providing a clear logistical advantage.
Superior RF Performance	Utilizes FHSS & fixed frequency modes with an advanced anti-collision algorithm for reliable multi-tag reading at speeds up to 500 tags/second.
Enhanced Data Precision	Provides RSSI and phase angle data for accurate tag positioning and tracking.
Robust Security & Flexibility	Features 16 pre-loaded security keys and powerful data filtering for secure, customized operations.
Future-Proof & User-Friendly	Supports online firmware upgrades and includes audible/visual indicators. Optional Wi-Fi/Bluetooth modules offer versatile connectivity.

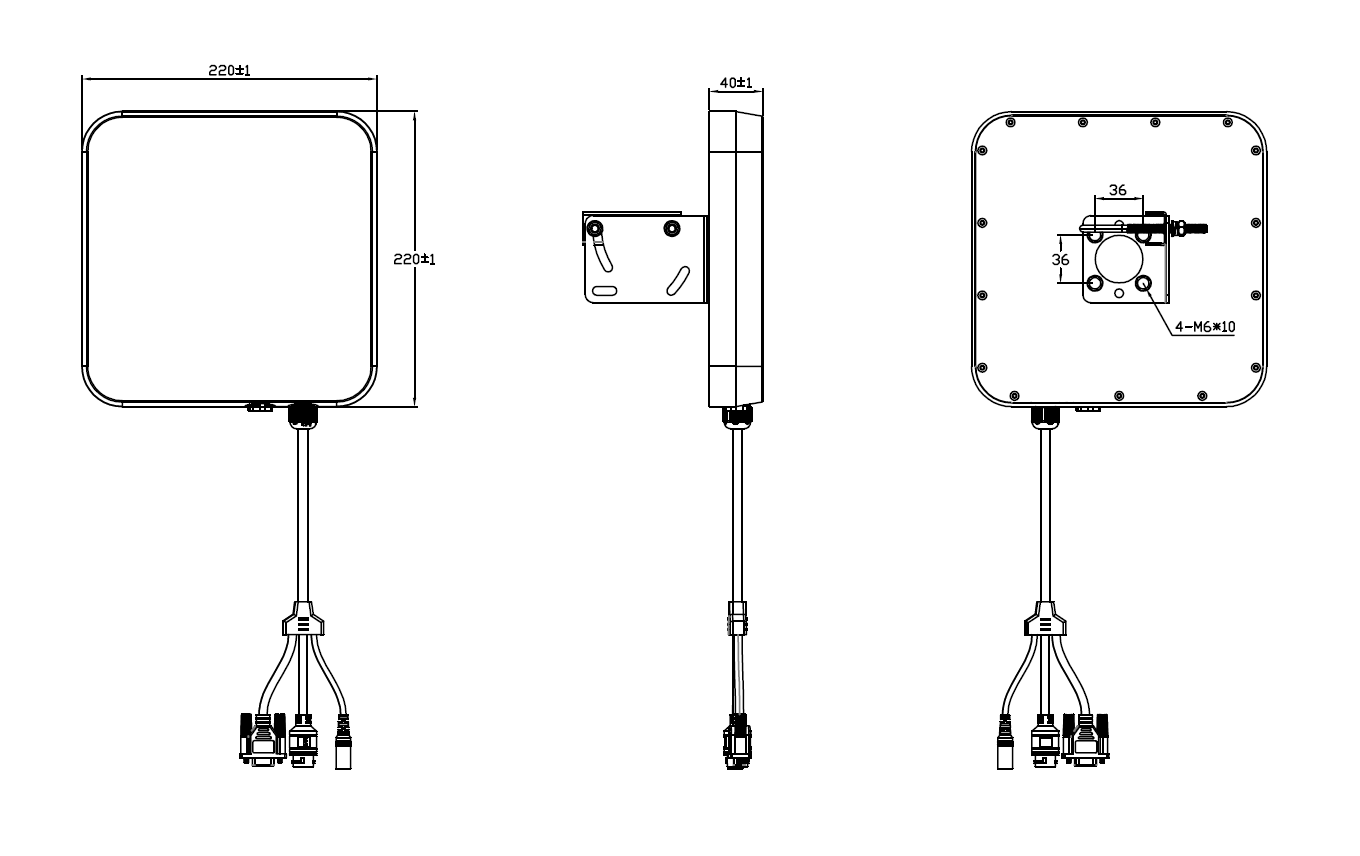

Dimensions

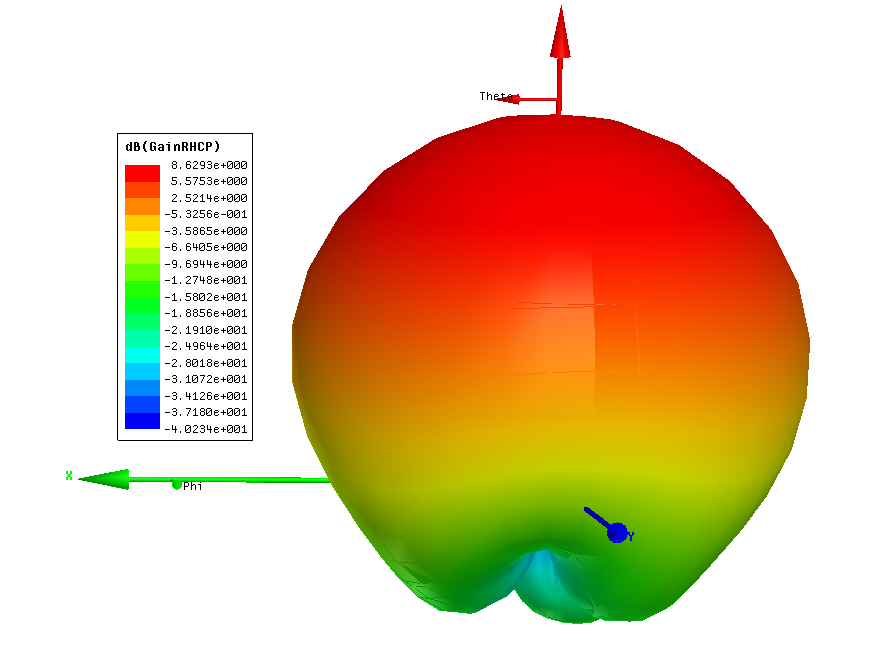

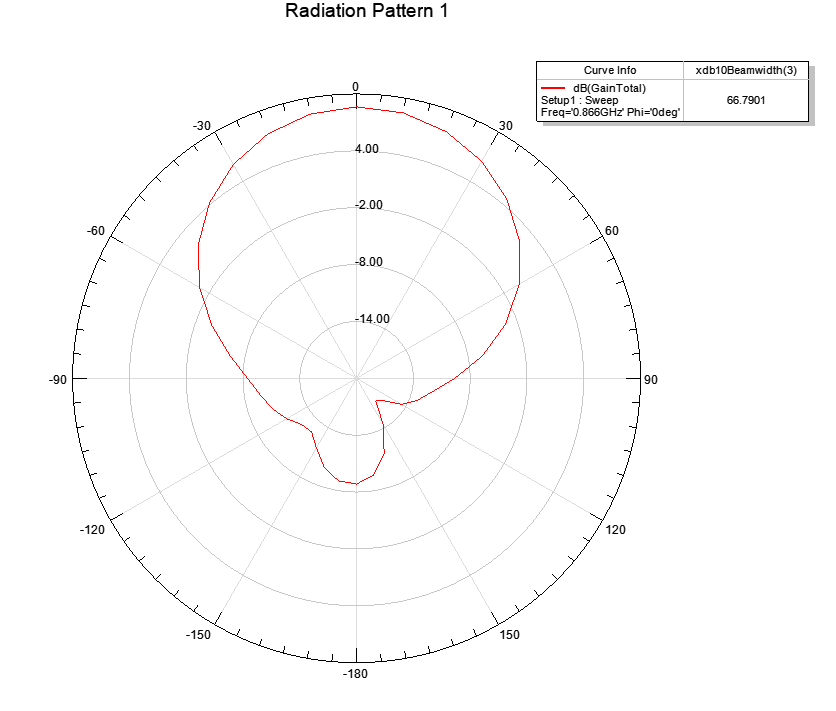

2D Radiation Patterns 3D Radiation Patterns

Specification

Physical		Interfaces
CPU	Cortex-M4 @240MHz	Standard Interfaces	RJ45 10/100M Ethernet
Memory	192KB/512KB		RS232, RS485, baud rate up to 460,800, the default 115200 N 8 1
Dimensions (L×W×H)	220mm220mm40mm		Wiegand 26, 34,66
Weight	N.W.: 1Kgs, G.W.:1.5kg	Optional Interfaces	Wi-Fi Wi-Fi 802.11b/g/n Bluetooth BLE5.0, PoE+
Material	Back Board: Aluminum	GPI	2 x Input, 12~24V
Material	Housing: ASA (Advanced UV-Resistant Material)	GPO	2 x Relay Output, DC 30V/ 2A, AC125V/0.3A
Protection Rating	IP66 / 67 (Dust-proof and Water-resistant)	Indicator	Built-in Buzzer and Status LED
Color	Industrial White	Power
Installation Pole	φ40～φ50mm	Input Voltage	DC 12V ±10%
RFID		Power Consumption	Max 10W@30dBm
RFID Chip	Fudan FM1616	Recommended Power Adapter	DC 9V-30V, 24-60W connector:5.52.510mm
Air Protocol	EPC global Class 1 Gen 2 (ISO/IEC 18000-6C)	Environment
Frequency Range	NA: 902-928MHz (FCC)	Operating Temperature	-25°C to +65°C
	EU: 865-868MHz (ETSI)	Storage Temperature	-40°C to +85°C
	CN: 920-925MHz (CMIIT)	Atmospheric Pressure	86kPa～108kPa
	860-960MHz Configurable	Lightning protection	Direct grounding
Output Power	5dBm~33dBm (±1dB)	Operating Humidity	5% to 95% RH (Non-condensing)
Receiver Sensitivity	-80dBm@ 10%BER	IP Level	IP66/67
Integrated Antenna	8dBi Circular Polarized Antenna	Software & Integration
Beamwidth (Half-power)	Hor:65°±3°/ Ver:65°±3°	Supported APIs	C#、JAVA、C/C++、Python
Axial Ratio	≤3dB	Configuration Tools	Windows-based Demo Software
Performance Specifications		Protocol Support	TCP/IP
Peak Tag Read Rate	>800 tags/second	Firmware Upgrade	Supported via Ethernet
Read Distance	0-12m	Certifications & Compliance
RSSI	Supportable	FCC / ANATEL	Compliant
Temperature Monitoring	Optional	ETSI / BIS / EAC	Compliant
Tag Key Pre-installation	Support 16sets max	CMII / KC	Compliant
Ttag phase Angle	Support to return	RoHS/REACH	Compliant
