The SeeMore IoT TT5815s is a rugged, sewable UHF RFID tag specifically designed for demanding industrial laundry applications where heat-sealing isn't preferred. With its slim profile and exceptional durability, it withstands over 200 industrial wash cycles including high-temperature washing, tumble drying, ironing, and sterilization processes. The tag's sew-in design allows for discrete placement within seams or pockets, making it ideal for healthcare textiles, military uniforms, hotel linens, and rental garments where permanent identification is required.
Applications
Hospital linen management (surgical drapes, patient gowns)
Hotel textile tracking (bed linens, towels, robes)
Uniform services (military, corporate, industrial workwear)
Rental linen management (tablecloths, napkins, bedding)
Industrial laundry automation systems
Textile lifetime monitoring and replacement planning
High-temperature sterilization processes
Dry cleaning operations
Key Features
withstands 200+ industrial washing cycles
sew-in installation (hem or pocket)
resistant to high pressure (60 bars water extraction)
tolerant of extreme temperatures (up to 185°C ironing)
chemical resistant (detergents, bleach, alkali)
global UHF frequency support (860-960 MHz)
long read range: up to 11m in EU region, 6.5m in US region
pre-encoding and custom printing options available
OEKO-TEX® certified for textile safety

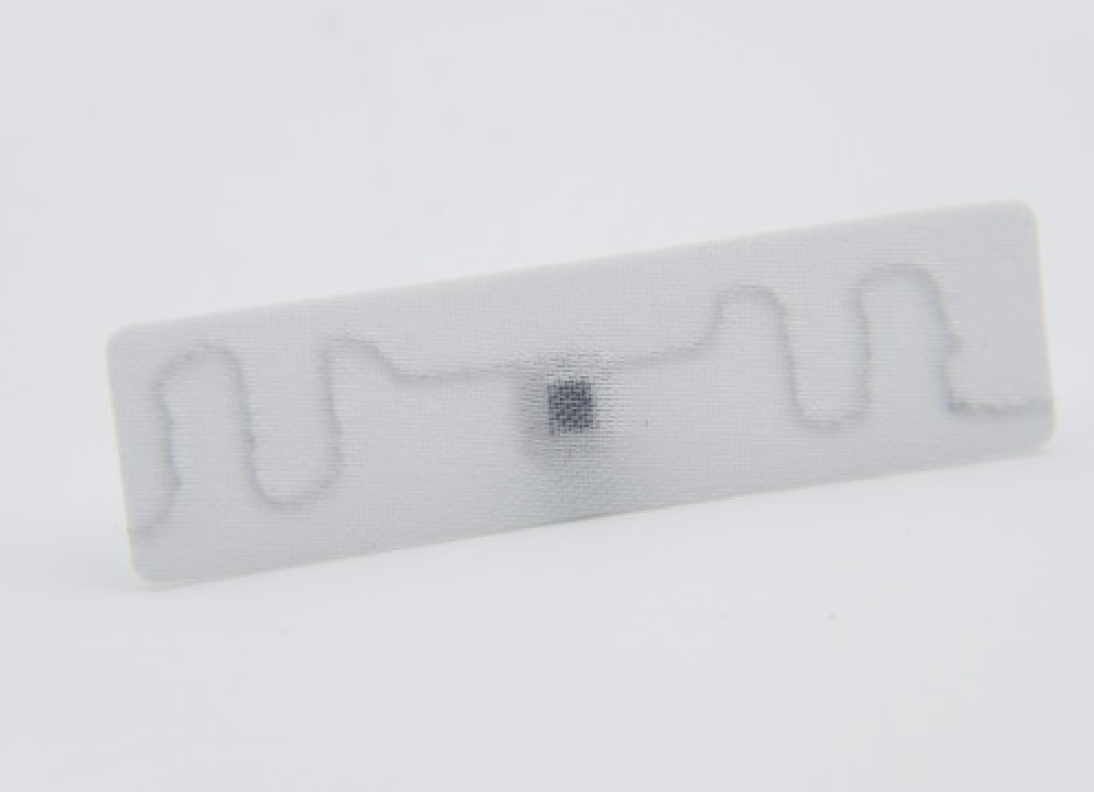

Appearance and Structural Diagram
Technical Specifications
Parameter | Value |
---|---|
Model | HydroSewn LA425 |
RFID Standard | EPC Class 1 Gen 2, ISO 18000-6C |
Frequency | 860-960 MHz (worldwide) |
Dimensions | 58 × 15 mm (2.3 × 0.6 in) |
Thickness | Chip area: 1.4 mm (0.06 in), Tag body: 0.6 mm (0.02 in) |
Weight | <0.5 g |
Material | Polyester |
Chip Type | NXP Ucode 9xe |
Memory | EPC: 128 bits, TID: 96 bits, User: N/A |
Data Retention | >20 years |
Rewrite Cycles | 100,000 times |
Read Range | Fixed Reader: US >6.5m (21 ft), EU >11.0m (36 ft) |
Handheld Reader: US >10.0m (33 ft), EU >10.0m (33 ft) | |
Installation | Sewn into hem or pocket |
Warranty | 200 washing cycles or 3 years (whichever comes first) |
Washing Methods | Laundry, Dry cleaning |
Water Extraction | Resists up to 60 bars pressure |
Chemical Resistance | Detergent, Softener, Bleach (Oxygen/Chlorine), Alkali |
Max Temperature | Washing: 90°C (194°F) for 15 minutes |
Pre-drying: 180°C (356°F) for 30 minutes | |
Ironing: 185°C (365°F) for 10 seconds | |
Sterilization: 135°C (275°F) for 20 minutes | |
Operating Environment | -20°C to +85°C (-4°F to +185°F) / 8% to 95% RH |
Certifications | OEKO-TEX® STANDARD 100, RAIN Alliance compliant |
Packaging & Ordering Information
Option | Specification |
---|---|
Standard Packaging | Rolls with 76.2 mm (3") core diameter |
Quantity per Roll | 500 tags (custom quantities available) |
Custom Printing | Logo, serial numbers, custom encoding |
Pre-encoding | EPC and TID programming available |
Lead Time | Standard 5-7 days; customized orders 10-14 days |
Sample Availability | Free samples available upon request |
