High-Performance, Fragile antenna design for ETC, Parking, Logistics Applications
The TL9727w is a high-performance UHF RFID windshield tag specifically engineered for vehicle identification and management systems. These tags comply with ISO 18000-6C (EPC Class 1 Gen 2) standards and are optimized for high-speed vehicle reading applications.
| Feature | Advantage/Benefit |
|---|---|
| Alien Higgs 3 Chip | Delivers superior read performance and reliability in challenging RF environments |
| Wide Frequency Range (865-928 MHz) | Compatible with global UHF RFID systems and regional regulations |
| High-Speed Reading (up to 120 km/h) | Ideal for toll collection, parking, and traffic management applications |
| Tamperproof Technology | Prevents tag reuse through antenna destruction when removed - essential for security applications |
| Dual-Side Printing Capability | Enables logos, barcodes, and serial numbers on both sides for enhanced identification |
| Extended Temperature Range (-40°C to +85°C) | Suitable for harsh automotive environments in all climate conditions |
| Roll Format Supply | Optimized for high-volume thermal transfer printing and encoding operations |
| Ample Memory (EPC 96-bit + User 512-bit) | Provides sufficient data capacity for vehicle information and application data |
Printing: Thermal-transfer printable area; barcode, QR code, logo, variable data
Encoding: Pre-encoded EPC & User memory blocks (GS1/GTIN compliant)
Sequential Serialization: Bulk encoding with unique EPC ranges
Slitting: Custom roll widths and lengths (MOQ-dependent)
Format: Supplied on 76mm wide rolls for seamless integration with automated label conversion and print-and-apply systems.
Compatibility: Ideal for use with Zebra ZT Series, Intermec PD4x, and other industrial RFID printers.
Label Construction: Can be converted into labels using 60gsm glassine release liner (or other face stocks) for manual or automatic application.

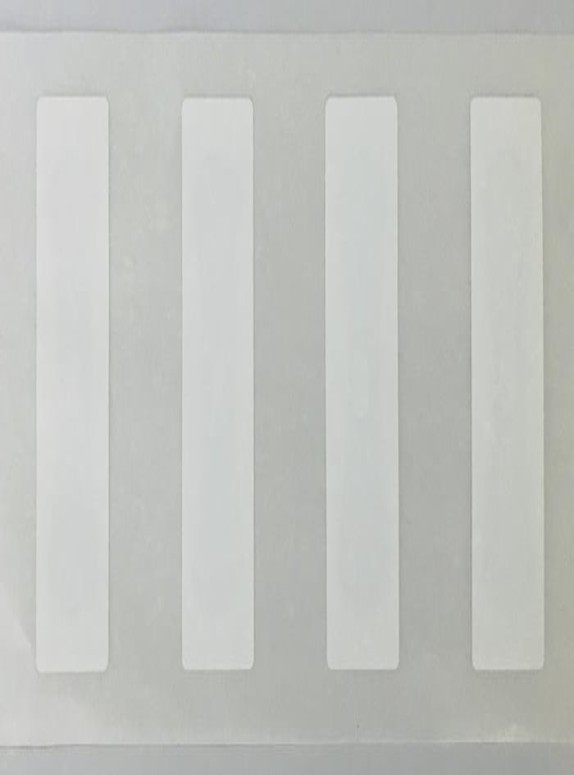

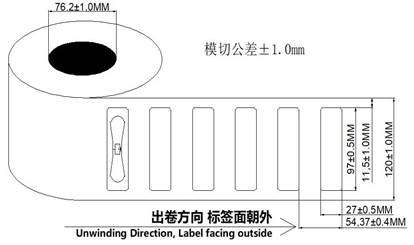

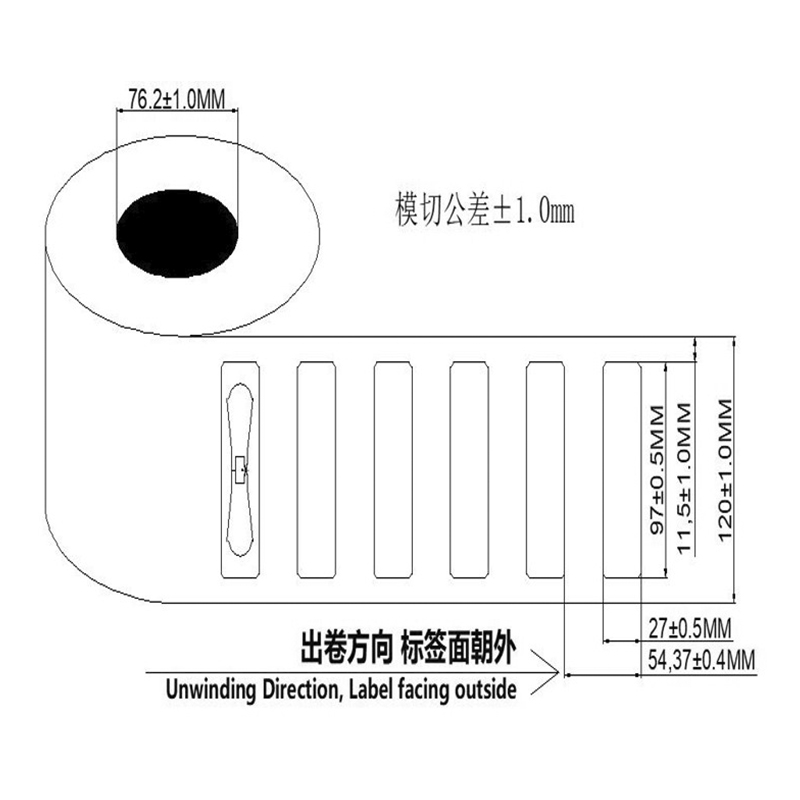

Appearance and Structural Diagram


|
Dimensions |
97 × 27 × 0.3 mm |
|
Chip |
Alien Higgs 3 (or equivalent) |
|
Protocol |
ISO 18000-6C (EPC Class 1 Gen 2) |
|
Frequency |
865-928 MHz |
|
Memory |
EPC: 96-bit, User: 512-bit, TID: 96-bit |
|
Reading Speed |
Up to 120 km/h |
|
Reading Range |
0 to 16m (depends on reader) |
|
Operating Temperature |
-40°C to +85°C |
|
Data Retention |
10 years |
|
ESD Protection |
2 kV |
|
Face Stock |
Printable White PET |
|
Liner Type |
Printed Glassine Paper |
| Parameter | Detail |
|---|---|
| Qty per Roll | 1000-3000pcs each roll optional |
| Rolls per Carton | 4 or 8 (Customizable) |
| Core Diameter | 76.2 mm (3") |
| Free Samples | 50 inlays for application testing |
| Lead Time (Standard) | 7-10 days |
| MOQ | 1 Roll (2,500 pcs) - Discuss smaller or bigger quantities |
