Smart Jewelry RFID label JL5638 for inventory anti-theft and payment

Core Excellence

• Discreet & Aesthetic Design: Thin, flexible, and available in various small sizes to blend seamlessly with jewelry items without obscuring their beauty.

• Superior Performance on Metal: Expertly tuned antenna design ensures reliable read rates on metallic surfaces, a critical requirement for jewelry tracking.

• High-Security Level: Featuring the NXP U9ex chip with a factory-locked, unique 128-bit TID that cannot be cloned, providing a powerful tool against counterfeiting.

• Printing & Encoding Ready: Compatible with all major RFID printers (Zebra, Sato, Postek) for on-demand encoding and printing of barcodes, logos, or prices directly onto the tag.

• Cost-Effective: Provides the premium performance of an NXP chip at a competitive price point, enabling the tagging of a wide range of inventory.

Customization Options

• Printing: Thermal-transfer printable area; barcode, QR code, logo, variable data

• Encoding: Pre-encoded EPC & User memory blocks (GS1/GTIN compliant)

• Sequential Serialization: Bulk encoding with unique EPC ranges

• Slitting: Custom roll widths and lengths (MOQ-dependent)

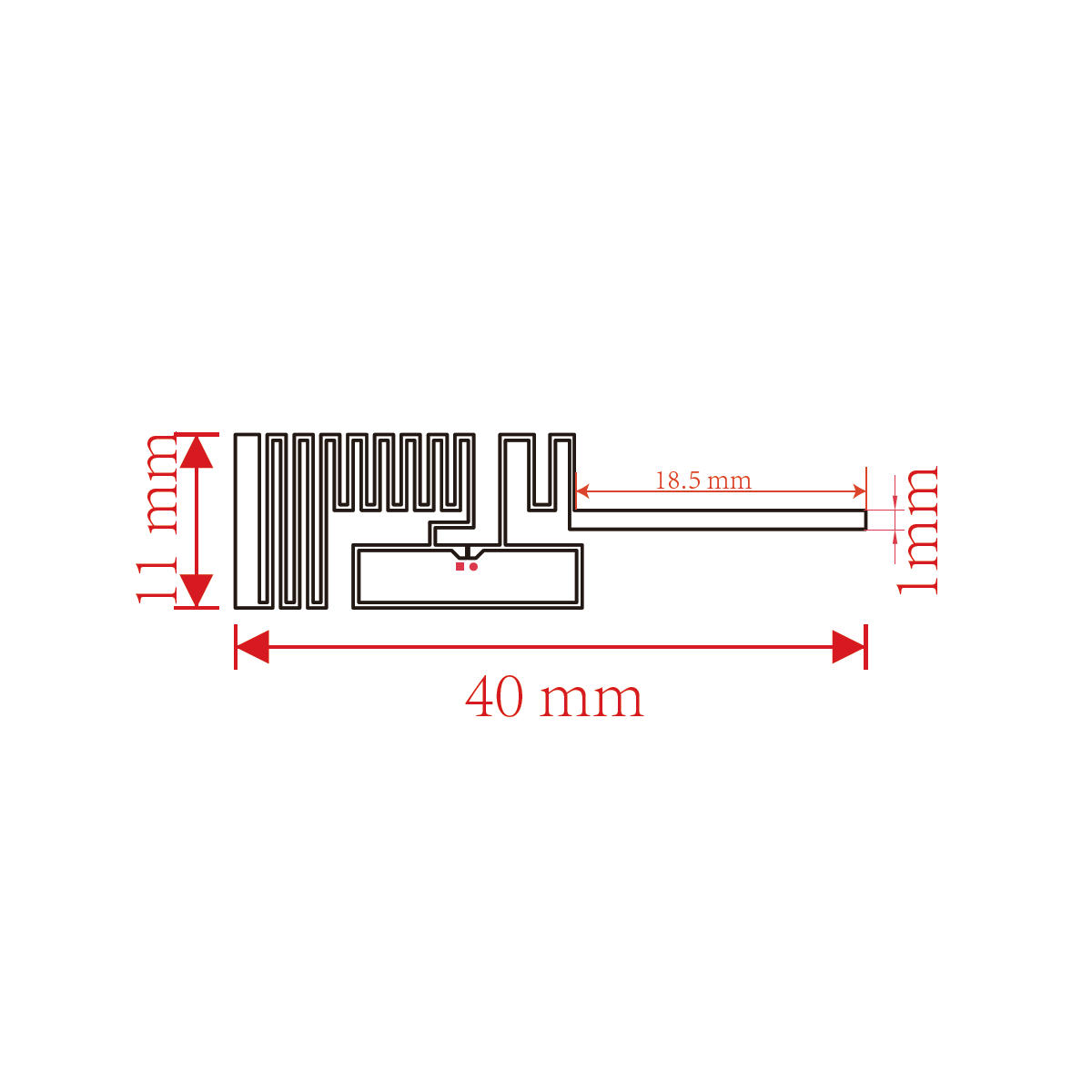

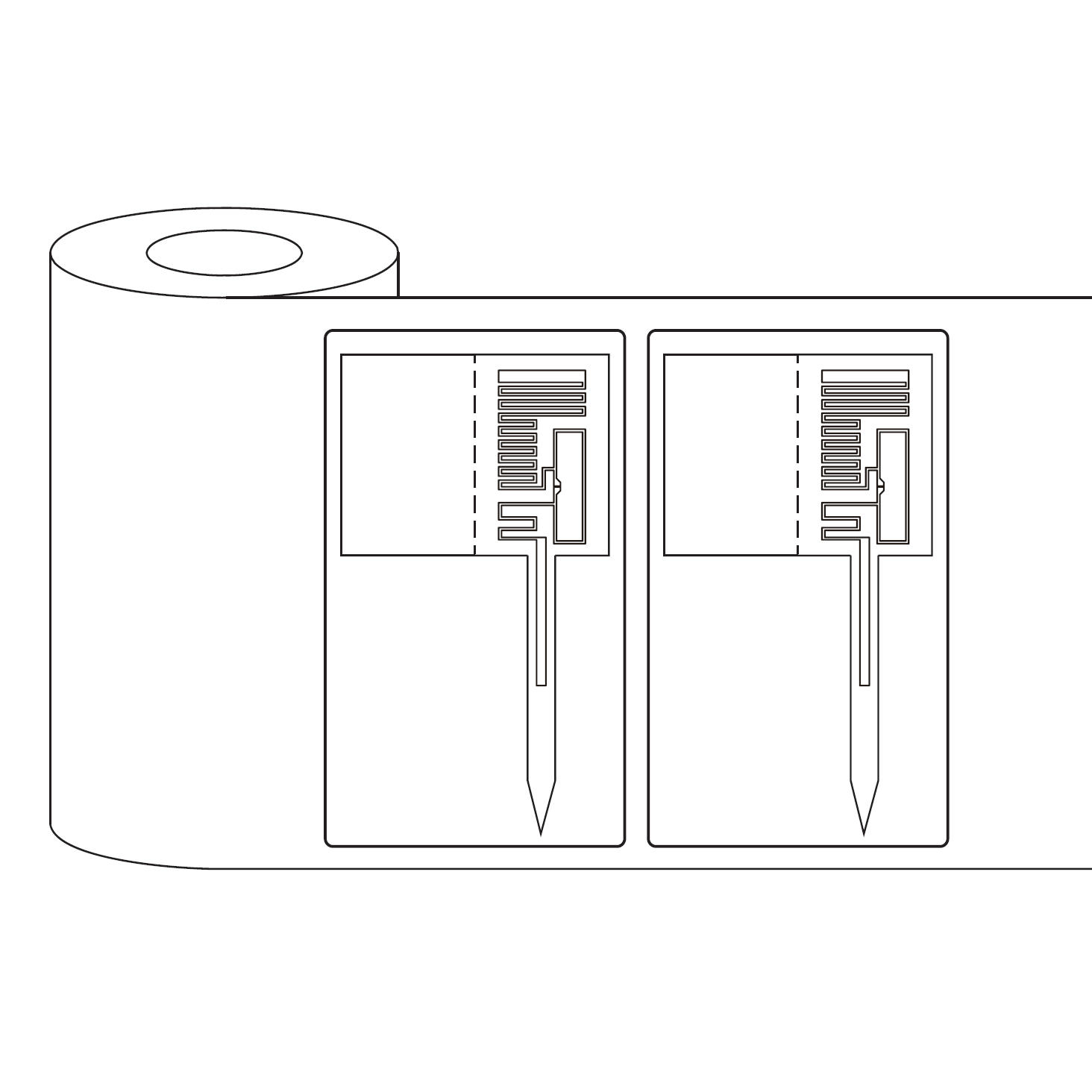

Appearance and Structural Diagram

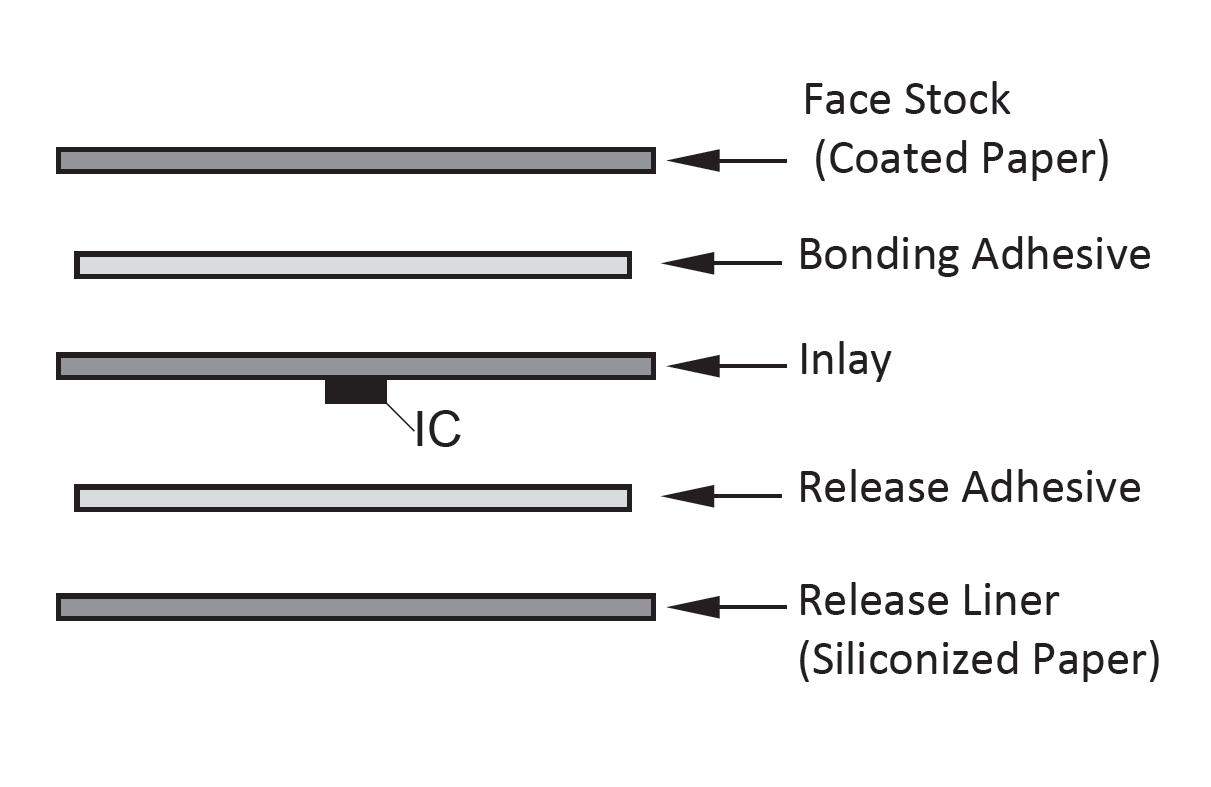

RFID Tag Layer Structure:

1. Face Stock (PET or Coated Paper)：Top printable layer of the tag to provide printable surface and environmental protection

2. Bonding Adhesive: Permanent adhesive for inlay attachment, to secures inlay to face stock permanently

3. Inlay → Inlay (Industry term - retain original): RFID chip + antenna embedded in substrate,

4. which contains the RFID IC and antenna (critical functional component)

5. Release Adhesive: Temporary adhesive for liner backing, which allows temporary attachment to liner

6. Release Liner (Siliconized Paper): Protective backing paper peeled during application, to enable die-cutting and protects adhesive until use
