General Purpose UHF PET RFID Label T7320L-A | Impinj Monza® M730

Why Choose This RFID lable for Automation/Assets Tracking?

• Direct Impinj M4QT Alternative: Offers a compelling performance-to-price ratio for users of the popular M4QT chip.
• Optimized for Speed: The design prioritizes read reliability in motion, critical for RFID tunnel systems and automated identification.
• Simplifies Procurement: Large roll counts reduce the frequency of roll changes and inventory management overhead for high-volume users.

Technical Differentiation

✅ Logistics & Automation Focus
The elongated dipole antenna is tuned for maximum yield on conveyor belts, providing consistent reads on packages of various sizes at high speeds, reducing misreads and improving sortation accuracy.

✅ Proven Impinj Performance
Leverages the industry-standard Impinj M730 chip, known for its reliable performance and powerful anti-collision algorithm, enabling the reading of hundreds of tags per second.

✅ Unmatched Cost-Efficiency
Designed for high-volume, low-cost item tagging. The efficient manufacturing process and 12,500 inlays per roll minimize changeover times and offer a superior total cost of ownership (TCO).

✅ Durability for Demanding Environments
ESD protection up to 2000V safeguards the IC during conversion and application. The permanent adhesive ensures reliable bonding to corrugated cardboard and various packaging materials.

Customization Options

• Printing: Thermal-transfer printable area; barcode, QR code, logo, variable data

• Encoding: Pre-encoded EPC & User memory blocks (GS1/GTIN compliant)

• Sequential Serialization: Bulk encoding with unique EPC ranges

• Slitting: Custom roll widths and lengths (MOQ-dependent)

Conversion & Integration

• Format: Supplied on 76mm wide rolls for seamless integration with automated label conversion and print-and-apply systems.

• Compatibility: Ideal for use with Zebra ZT Series, Intermec PD4x, and other industrial RFID printers.

• Label Construction: Can be converted into labels using 60gsm glassine release liner (or other face stocks) for manual or automatic application.

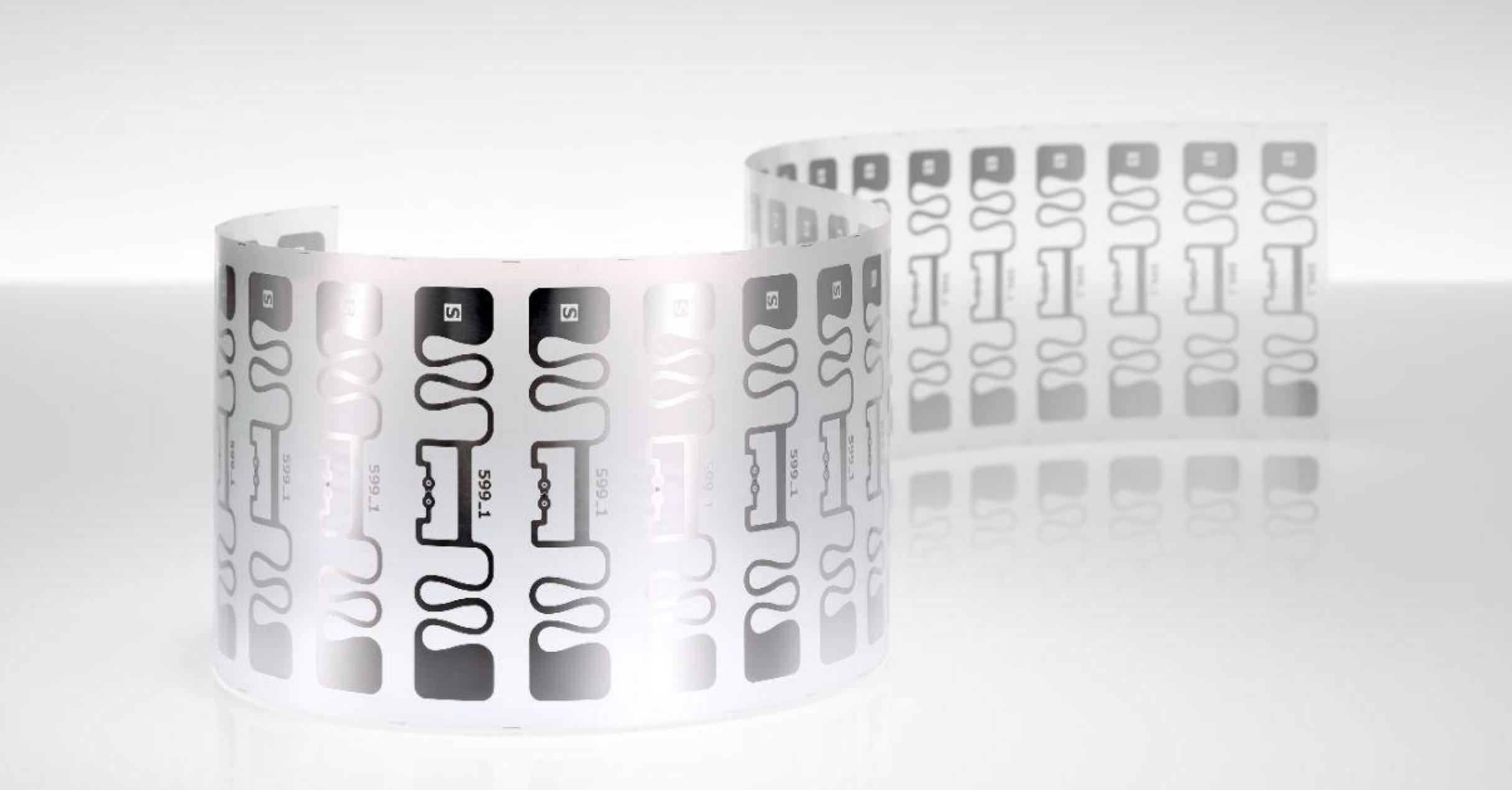

Appearance and Structural Diagram

RFID Tag Layer Structure:

1. Face Stock (PET)：Top printable layer of the tag to provide printable surface and environmental protection

2. Bonding Adhesive: Permanent adhesive for inlay attachment, to secures inlay to face stock permanently

3. Inlay → Inlay (Industry term - retain original): RFID chip + antenna embedded in substrate,

4. which contains the RFID IC and antenna (critical functional component)

5. Release Adhesive: Temporary adhesive for liner backing, which allows temporary attachment to liner

6. Release Liner (Siliconized Paper): Protective backing paper peeled during application, to enable die-cutting and protects adhesive until use
